AMERICAN Uniturn

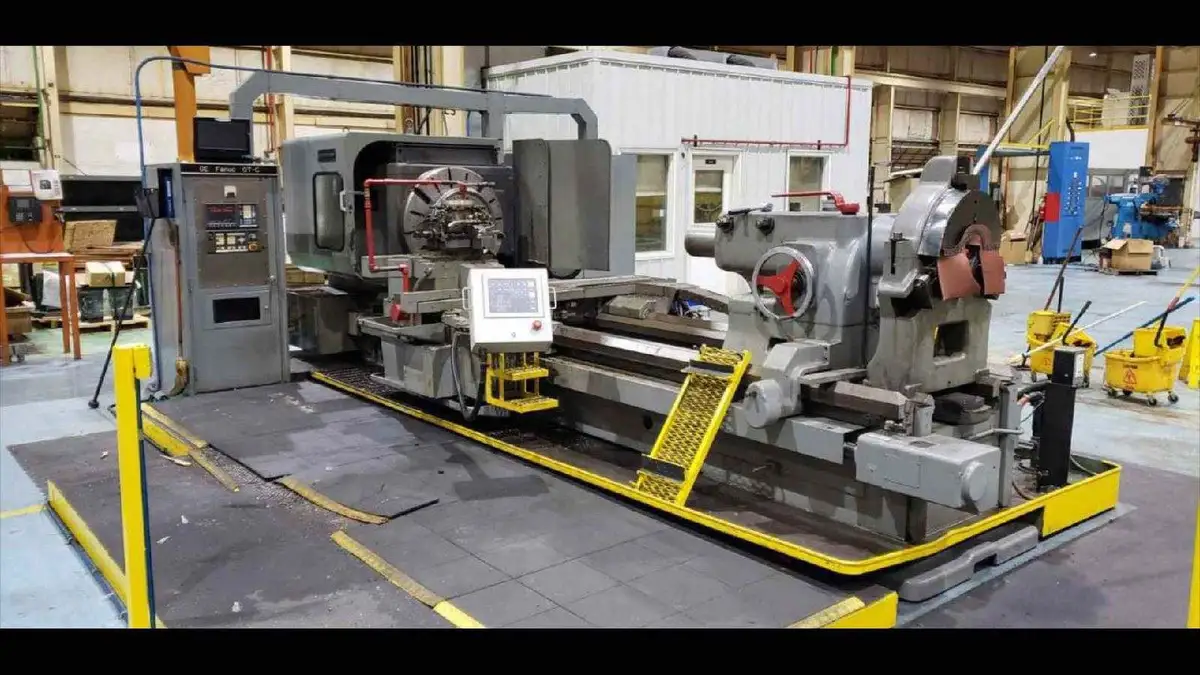

30" x 108" American #4025 Uniturn Cnc Flat Bed Lathe
Specifcations:
Swing Over Carriage Wings 49-1/2"
Swing Over Cross Slide 30"
Spindle Nose L-3
Spindle Nose Taper #7 Mt
Spindle Speeds 5 to 750 Rpm
Feed Range .01 - 125 Ipm
Tailstock Spindle 7-1/2" Diameter
Main Drive Motor 75 Hp Wired for 460 Volt
Equipped With:
GE Fanuc Ot-c Cnc Control
Tape Reader
(3) 12-1/2" Square Turrets with 10-1/2" Curvic Coupling
(Modified to Accept 1-1/2" Square Tools)
(1) 12-1/2" Hexagon Turret with 10-1/2" Curvic Coupling
Misc. Boring Bar Holders
(1) LH Straight Holder
(1) RH Straight Holder
(1) LH Offset Holder
(1) RH Offset Holder
(2) 3-Way Holders
(4) Boring Bar Bushings, 2-1/2" OD x 2" ID
Threading 9.99999" Lead to Max. Spindle Speed
(32) Sets of Offsets, +/-99.9999"
Head Mounted and Carriage Mounted Pushbutton Stations
With Operator's Manual Controls
Percent Load Meter
Keyboard for Manual Data Input
I.P.R. Programming
Buffer Storage
CSFM
Inch/Metric Switchable
Steadyrest
