6' MAS Model VR6A Radial Drilling Machine (1979)
Have one to sell?
ConditionUsed
1 available

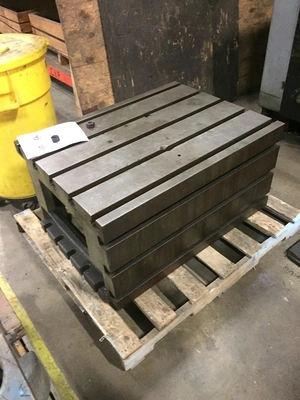

Box Table

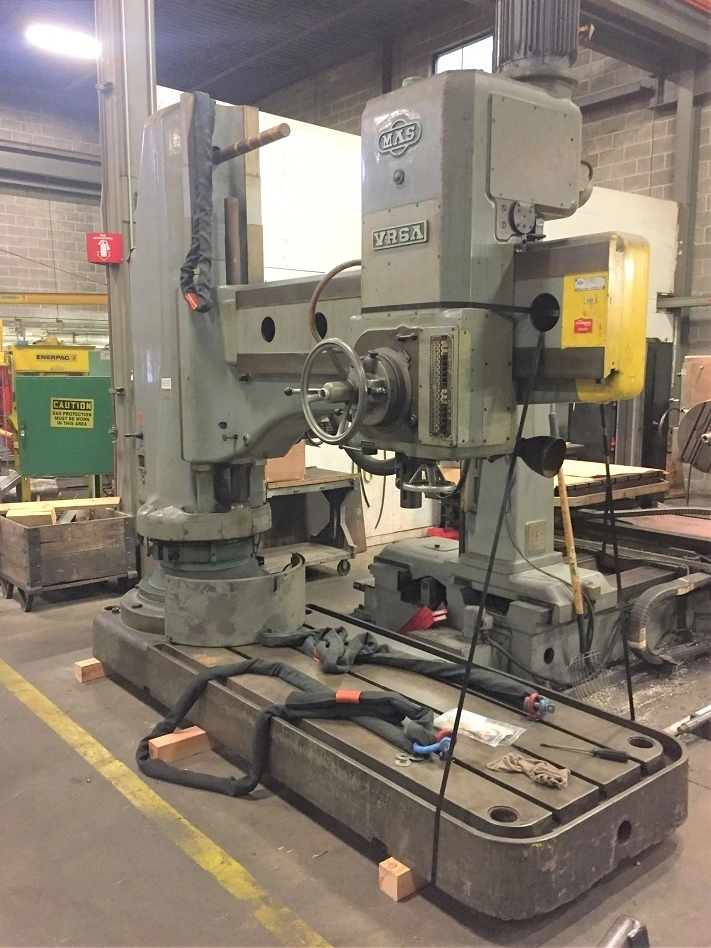

MAS Model VR6A 6' Radial Drilling Machine
Max. Distance "Column" To Spindle Centerline: 6-1/2'
Max. Drilling Dia. In 80 kp/mm2 Strength Steel Out Of Solid: 63mm (2.4")
Max. Pitch Circle Dia. Of Holes Being Drilled: 4596mm (180.4")
Max. Distance From Spindle To Base: 1885mm (74.2")
Vertical Travel Of Arm: (Power): 950mm (37.4")
Hor. Movement Of Headstock On Arm (Manual): 1613mm (63.5")
Clamping Surface: 2290 x 1080mm (90" x 42.5")
Spindle Taper: #5 MORSE
Spindle Dia: 80mm (3.14")
Spindle Drive Motor: 5.5kw) Spindle Speeds: 16
