JONES & SHIPMAN KELLENBERGER 524 EASY

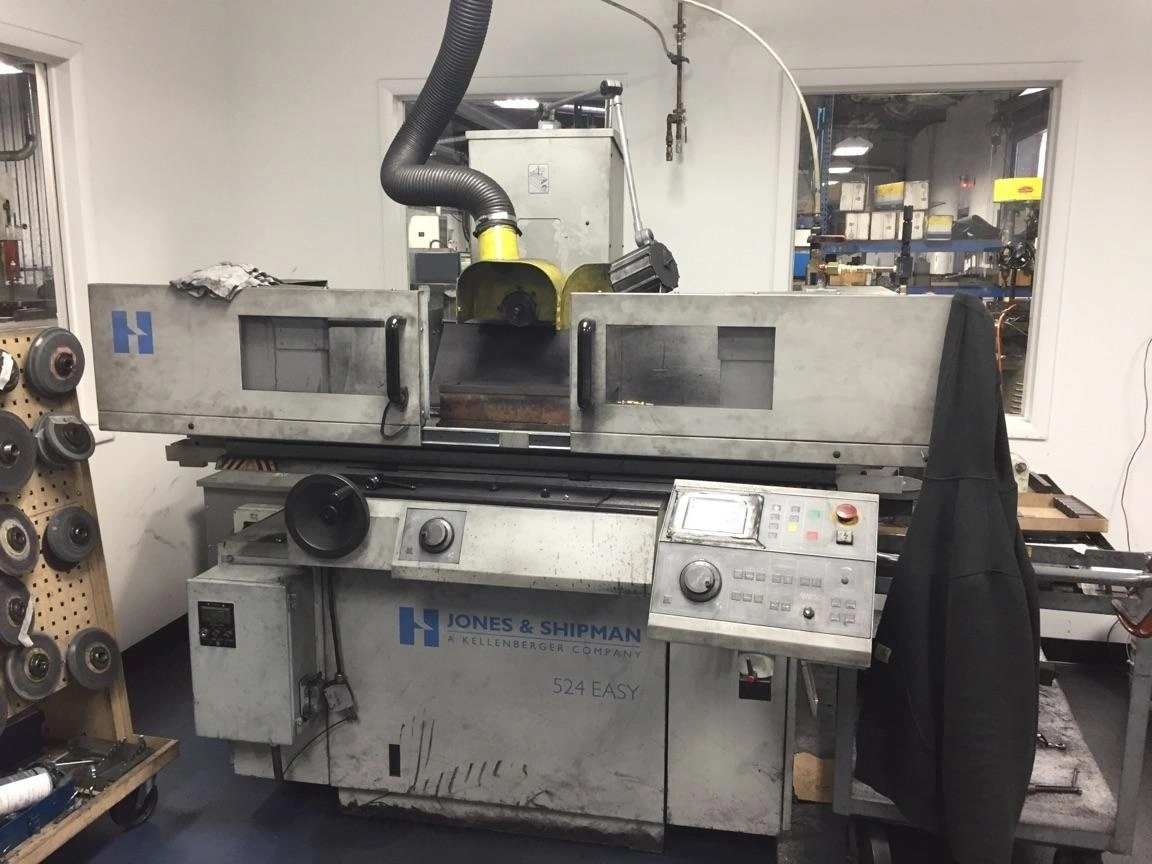

Jones & Shipman Kellenberger Model 524 Easy CNC Surface Grinder (2012)
Specifications and Equipment
Table Working Surface: 8" x 20"
Wheelhead Vertical Movement: Maximum 15.78"
Distance Between Table & Grinding Wheel: 10.86"
Table Load Capacity: 350 Lbs.
X-Axis Table Travel Hydraulic: 19.69"
X-Axis Table Travel - Hand feed: 24"
Y-Axis Feed - Minimum Programmable Increment: .0001"
Y-Axis Feed Rate: 0.06 - 3000 mm/Min.
Y-Axis Electronic Handwheel: - Switchable 0.0001,0.001,0.01,0.1 Steps
Z-Axis Table Crossfeed Travel - Ball Screw: 7.87"
Z-Axis Feed Rate: 0.06 - 3000 mm/Min.
Z-Axis Programmable Increment - Minimum: .0001" Resolution
Grinding Wheel: 10" x 1" X 3"
Grinding Wheel: 1000 - 4000 RPM Variable
Equipped With:
GE Fanuc CNC, Quick-Panel Jr. Control Interface
Set Up For Graphite, Manual Cycles: Dress & Grinding, CNC Dressing Cycles
Straight, Slotting, Facing, Vee, Special, CNC Grinding Cycles: Slotting,
Facing, Vee, Special, CNC Grinding Cycles: Slot, Area,
Front, Slot & Back, 8" x 20" Walker Magnetic Chuck
Coolant Filtration System with Paper Media Separator
Media Separator, Table Mounted 3-position, Diamond Wheel Dresser --
The above equipped with is subject to confirmation
