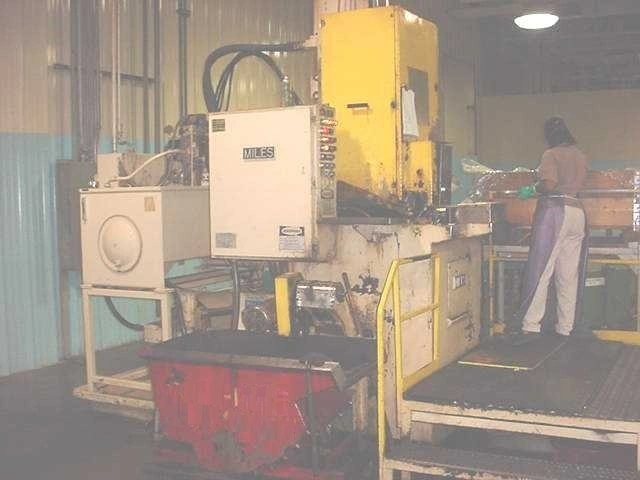

12 Ton TY Miles Model MBLD-24-36-120 Vertical Broach (1990)

Ty Miles Model MBLD-24-36-120 12 Ton Heavy Duty High Speed Vertical Broach
Tonnage Capacity: 12 Tons
Maximum Stroke: 38"
Speed: 60',90' or 120' FPM
Size of Ram: 60" x 8-1/2"
Distance Floor to Swing Up Table: 56"
Diameter of Cylinder: 3-1/2"
Diameter of Rod: 2-1/2"
Hydraulic Tank Capcity: 100 Gallons
Coolant Tank Capacity: 55 Gallons
Hydraulic Pump: 38 GPM
Motor: 50 HP
Equipped with:
Dual Finger Operation
Swing Up Table
Double Tool Carrier- 44" X 13-1/4"
Cycle Selector Switch/Cycle Counter
Variable Stroke Adjustment
Hydraulically Adjustable Ram Speeds
Adjustable Broaching Pressure
Automatic Lubrication System
132" X 74" X 119"
9,500 Pounds
