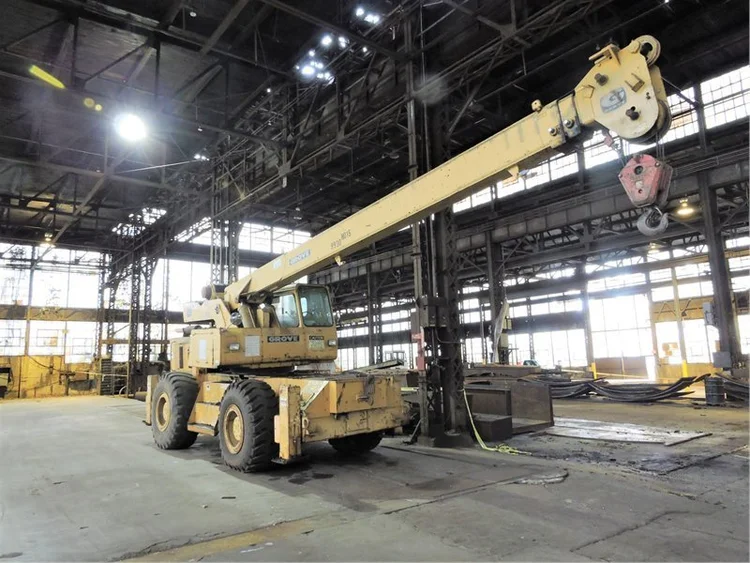

Grove Model RT500 18 Ton Rough Terrain Crane

Grove Model RT500 18 Ton Rough Terrain Crane
Selected Dimensions
Boom
I. Min Height @ Max Raise Angle 28 ft in 8.5 m
J. Max Height @ Max Raise Angle - no jib 70 ft in 21.3 m
K. Min Operating Radius 10 ft in 3 m
L. Max Operating Radius 65 ft in 19.8 m
M. Max Elevating Angle 75 degrees
Dimensions
A. Transport Length 36.8 ft in 11218 mm
B. Transport Width 8 ft in 2438 mm
C. Transport Height 11.2 ft in 3410 mm
D. Wheelbase 10.1 ft in 3073 mm
E. Ground Clearance 1.6 ft in 486 mm
F. Width w/ Outriggers Extended 20.4 ft in 6210 mm
G. Carrier/Base Length 21.6 ft in 6582 mm
H. Upper Structure Tail Swing Radius 10.3 ft in 3127 mm
Specification
Engine
Make Cummins
Model 6BT 5.9L
Gross Power 130.1 hp 97 kw
Power Measured @ 2500 rpm
Max Torque 386 lb ft 523.3 Nm
Torque Measured @ 1400 rpm
Displacement 360 cu in 5.9 L
Aspiration turbocharged
Operational
Operating Weight 53053 lb 24064.4 kg
Fuel Capacity 60 gal 227.1 L
Operating Voltage 24 V
Tire Size 20.5X25-24PR
Transmission
Type remote mounted powershift
Number of Forward Gears 6
Number of Reverse Gears 6
Max Speed - Forward 22.8 mph 36.7 km/h
Boom
Number of Sections 3
Min Height @ Max Raise Angle 28 ft in 8.5 m
Max Height @ Max Raise Angle - no jib 70 ft in 21.3 m
Max Elevating Angle 75 degrees
Max Lift Capacity 56000 lb 25401.2 kg
Swing Speed 2.5 rpm
Min Operating Radius 10 ft in 3 m
Max Operating Radius 65 ft in 19.8 m
Dimensions
Transport Length 36.8 ft in 11218 mm
Transport Width 8 ft in 2438 mm
Transport Height 11.2 ft in 3410 mm
Ground Clearance 1.6 ft in 486 mm
Wheelbase 10.1 ft in 3073 mm
