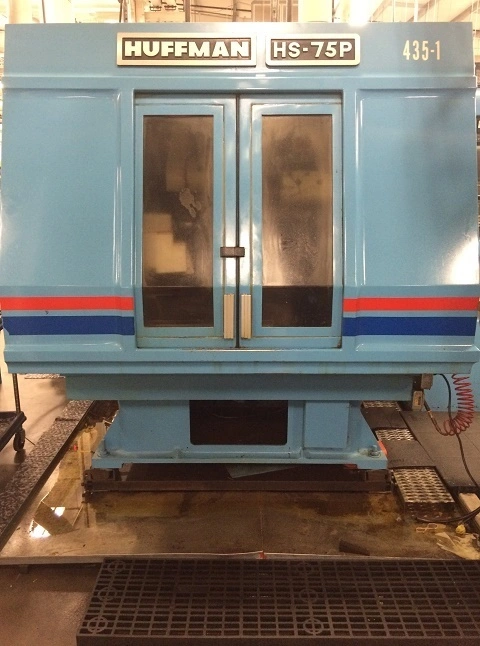

Huffman Model HS-75P CNC Tool & Cutter Grinder

Huffman Model HS-75P CNC Tool & Cutter Grinder
A-Axis (Work Spindle) 360 Degrees
C-Axis (Rotary Table) 220 Degrees
X-Axis (Main Base Slide) 24"
U-Axis (Saddle) 12"
V-Axis (Table) 8"
Wheelhead
Z-Axis travel-18"
Y-Axis travel-18"
Spindle Speed-4500 RPM
Spindle Horsepower 10 HP
Standard Grinding Wheel 8"
Capacity
Max.End Mill Shank Diameter-2.5"
Min.End Mill Shank Diameter-1/4"
Max.Grinding Radius- 4"
Max. Flute Length-2"
Diameter Shank-8"
Max Overall Length of Tool-16"
Diameter of Work head Opening- 3 1/8"
Feedrates
All Linear Axis- 200 IPM
Z-Axis- 150 IPM
A-Axis- 3,000 deg/min
C-Axis- 700 deg/min
Equipped with
Fanuc 15M CNC
Specifications Subject to Verification
