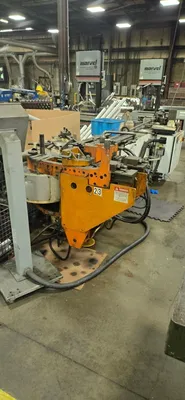

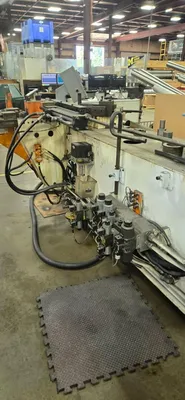

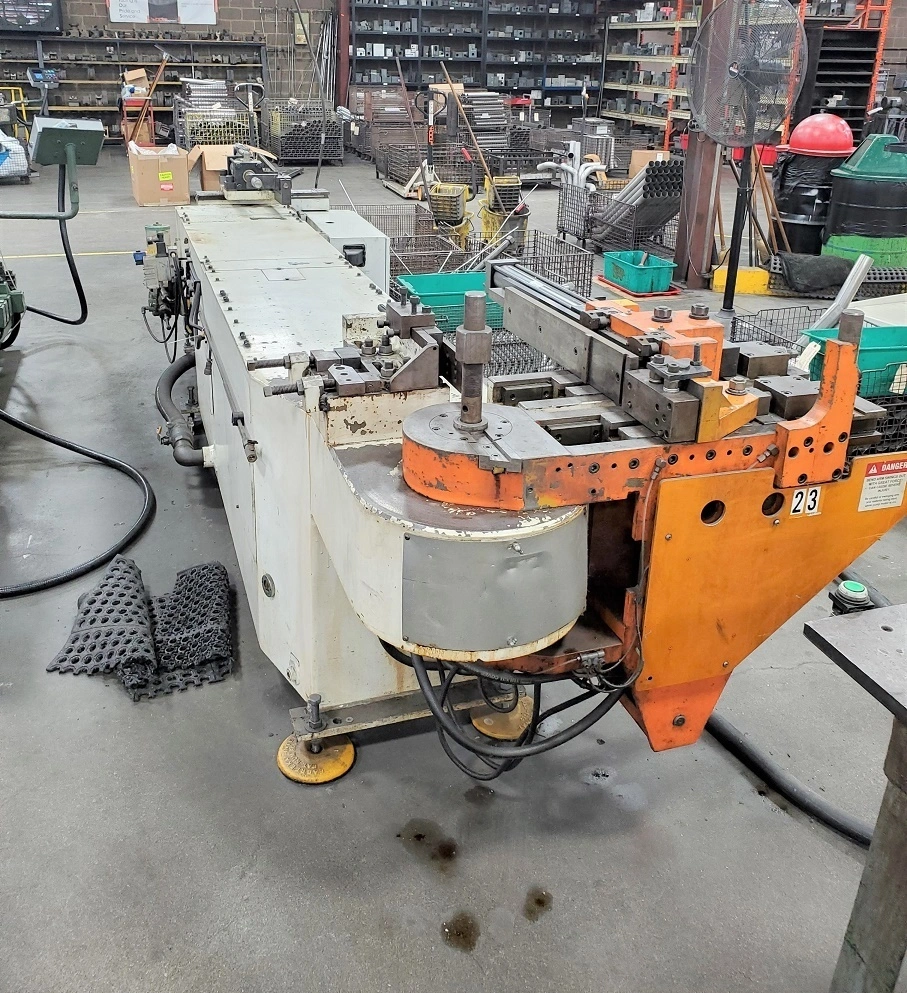

Techno Industrial SMS #300 CNC Tube Bender

TECHNO INDUST. SMS300 CNC Tube Bender

Capacity: 3" OD stainless steel
Maximum Feeding: 33ft/min
Maximum POB: 20 r/min
Standard Maximum Radius: 14 inch
Maximum Bend Angle: 190 degrees
Operating Pressure: 2000 psi
Reservoir Capacity: 175 US gallons
Approximate Weight: 14500 lbs
Approximate Dimensions: 202 L x 52 W x 62 H
Voltage: 220 volt/440/3 Phase 60 Hz, 50 Hz optional
Bend angle accuracy +/-: 0.1 degree
Bend arm speed: 2rpm
Maximum tube length over mandrel: 9 1/2 ft
Motor: 30HP
** Financing and Warranty Available
