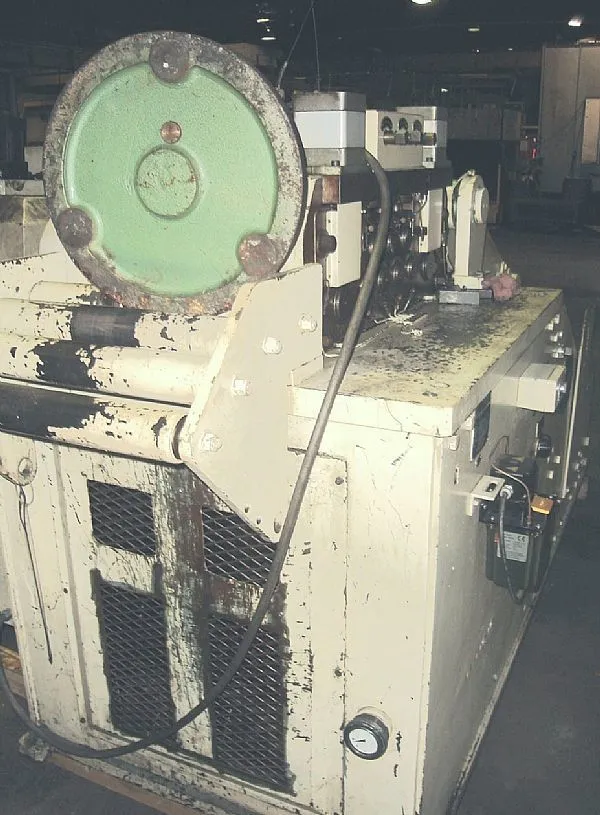

4800 pound BHP Combination Coil Cradle and Straightener

4800 pound BHP Combination Coil Cradle and Straightener
4,800 Pound capacity, 0.189" Maximum material thickness
7 Roll straightener.
Specifications and Equipment
maximum coil weight: 4,800 Pounds
Coil I.D.: 15.7"
Max. material thickness: 0.189" (for straightening)
Straighteneing rolls: 7 (3 over 4)
Straightening roll diameter: 2.6"
Coil feed-rate: Variable from 0 to 708 IPM
Main drive motor: 7.5 HP AC
Additional features:
Hydraulic pump and tank, Entry pinch rolls, Exit pinch rolls, Pinch roll
Exit pinch rolls, Pinch roll pressure gauge, Bijur lubrication pump.
