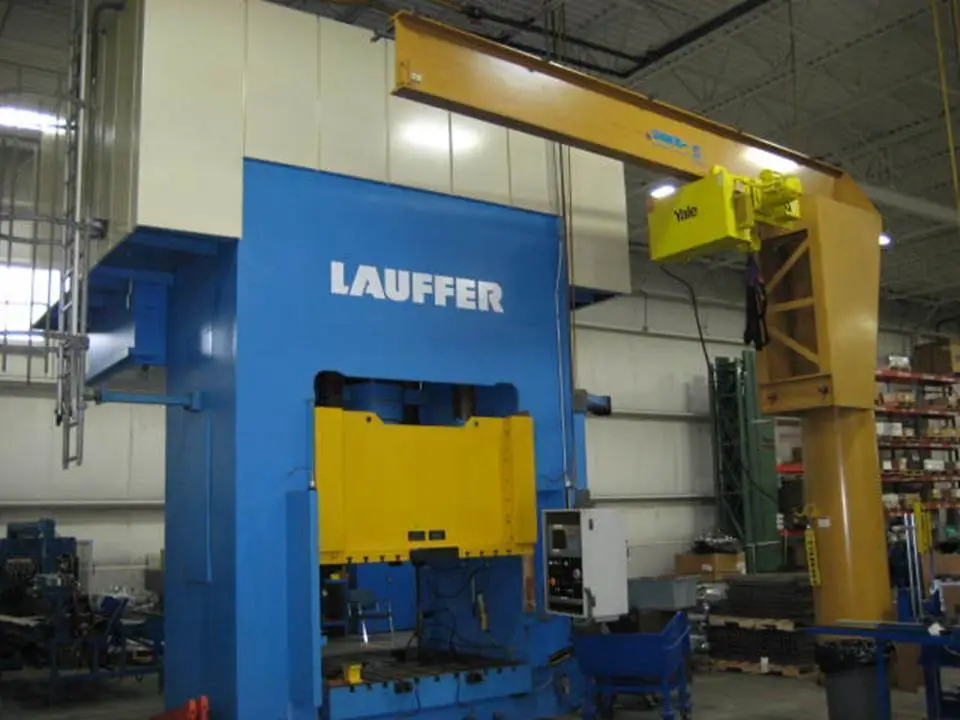

1200 ton Lauffer Model RZX-1200 Straight Side Triple Action Deep Draw Hydraulic Press (2002)

Lauffer Model RZX-1200 Straight Side Triple Action Deep Draw Press
Total Pressing Force: 1200 Tons
Clamping Area: 78.7" X 78.7"
Ram Area: 78.7" X 78.7"
Upper Punch: 750 Tons with 30" Stroke
Slide: 450 Tons with 19.6" Stroke
Shut Height: 20"
Ram Speeds: Fast Advance 1180 IPM, Max Press Speed 130 IPM
Cushion: 750 Ton Lower Punch Load with 9.8" Stroke
Daylight: 39.3" at TDC and 19.6" at BDC
Cushion Speeds: Fast Advance 614 IPM
Accuracy: .0004" positioning and +/- 0.5% tonnage force
Depth of Pit Required: 60"
Slide Motor Drive: 75 HP
Upper/ Lower Drive: 150HP (2)
Approximate Weight: 182,000 Pounds
Present Electrical Arrangement: 460/3/60
Equipped with:
Allen Bradley PLC Control
Hilma Hydraulic Clamping Packaging
Sick Light Curtain Front/Back
Top/Bottom Hydraulic Clamping
(8 Sliding Clamps, Hydraulic Roll Blocks, Power Pack)
