#3 Moore #3 Precision Jig Grinder

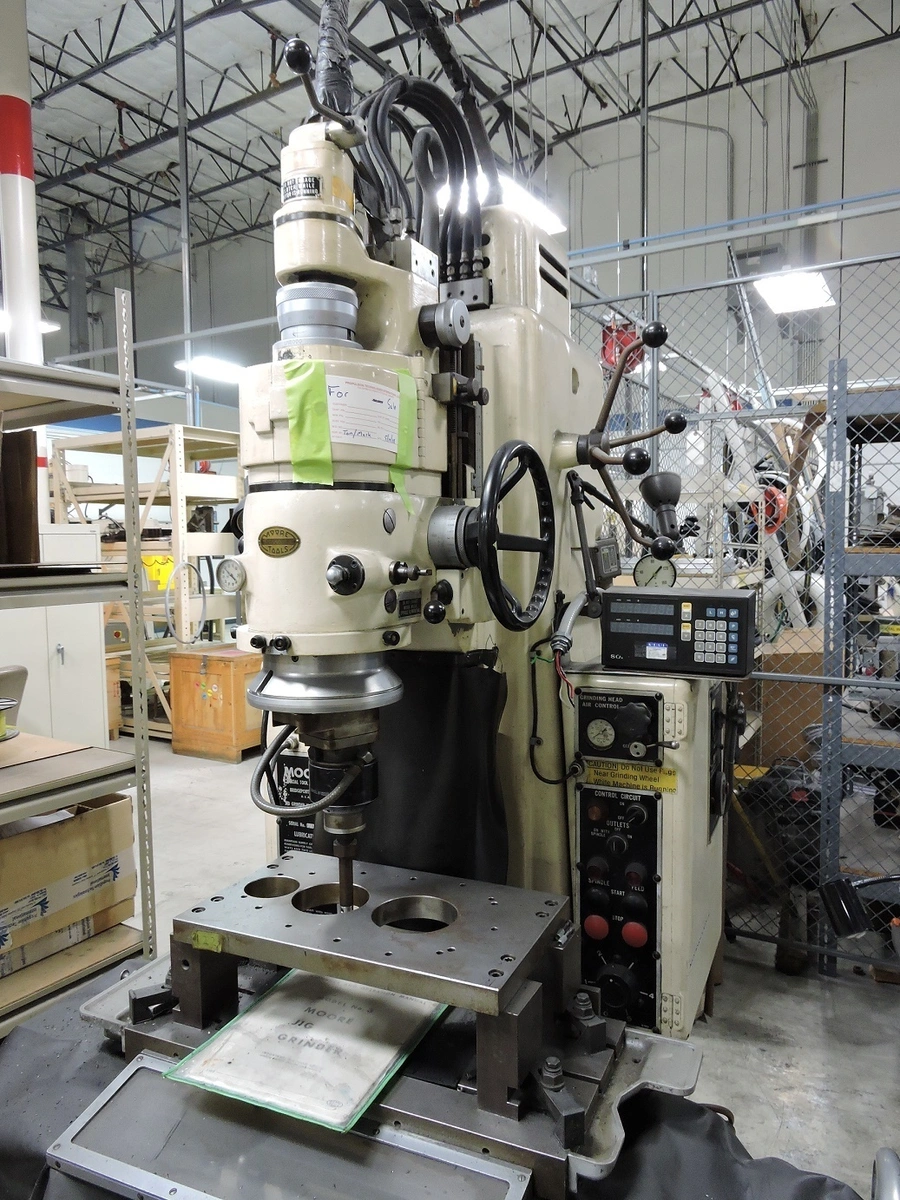

Moore Model #3 Jig Grinding Machine
Specifications:
Table Size 11" x 24"
Table Travels 11" x 18"
Spindle to Column Ways 13-1/2"
Spindle Speeds, Infinate 40 to 250 Rpm
(spindle speeds by air flow)
Hydrulic Controls, infinate 4 to 240 Spm
Grinding Wheel Speeds Up to 10,000 Rpm
Grinding Capacity 3/16" to 5"
with diamond mandrels 0.017"
Main Spindle Vertical Travel 3-5/8"
Taper Adjustment of Spindle Up to 1-1/2" or 3"
Total Angle Setting May be positive or negative
Weight, Approx. 3,800 Lbs.
Dimensions 82" x 69" x 102"
Equipped With:
Sony 2-Axis Digital Readout
Radial Offset of Grinding Spindle
