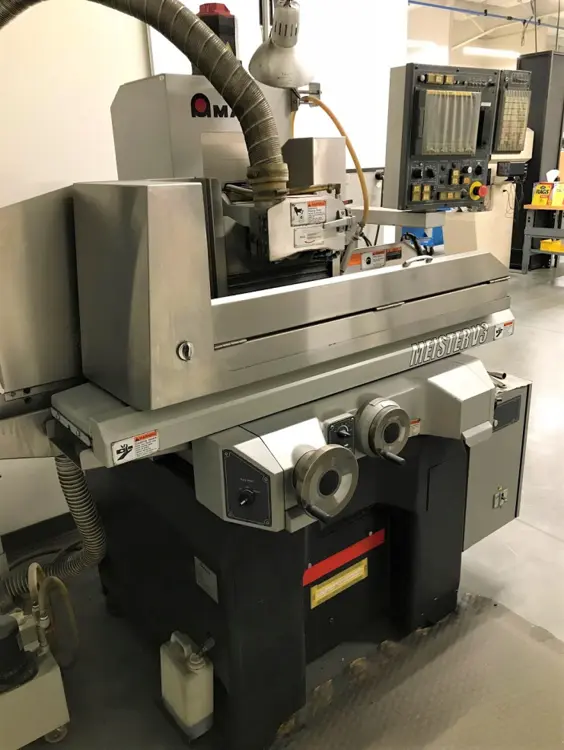

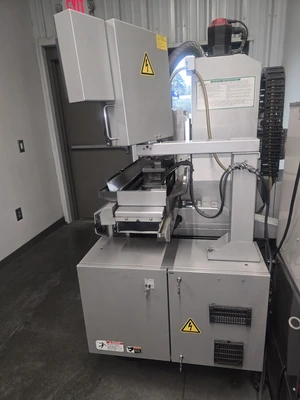

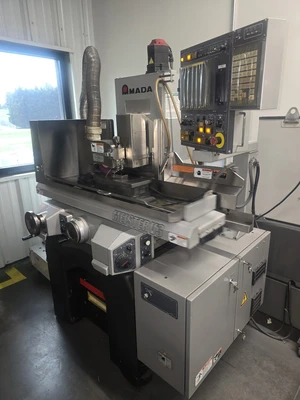

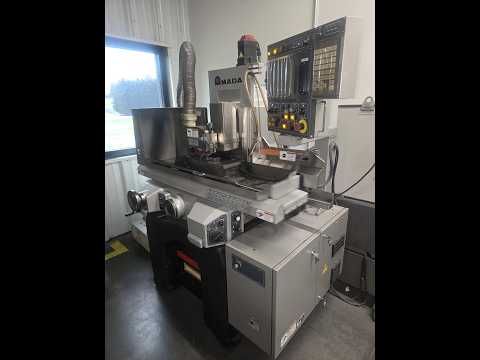

Amada Wasino Meister V3 CNC High Precision Forming Grinder (2012)

Amada Wasino Meister V3 CNC High Precision Forming Grinder (2012)

3 Axis, Fanuc 20i-FB CNC
Specifications and Equipment
Maximum chuck size (L x W x H) (mm): 350 x 150 x 100
Travels (Traverse/Cross/Vertical) (mm): 500/200/400
Wheel spindle motor (kW): 2.2
Wheel spindle grinding wheel size (OD x Width x Bore) (mm): 205 x 15 x 31
Traverse Travel: 500mm
Cross Movement: 200mm
Vertical Movement: 400mm
NC control axis Simultaneous 2-axis + 1 axis: Fanuc 20i-FB CNC
Features:
High Speed Table Reciprocation AMADA MACHINERY'S proprietary positioning
scale and hydraulic servo system can achieve 250 min-1
high speed reciprocation and significantly increase grinding efficiency.
Optical Linear Scale for High Accuracy Positioning The vertical axis is
accurately positioned by fully closed feedback using a linear scale of
0.05 μm resolution (optional for MEISTER V3). Full Cover Design
Insusceptible to Thermal Displacement The installed heat-insulating cover
can cope with thermal symmetry structure and environmental change and
assure work safety.

Dimensions

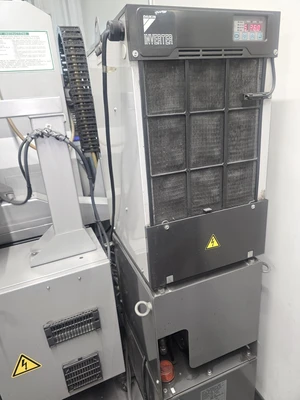

14x18x57 Inverter
45x65x77 Machine
22x38x46 Dust and coolant tank
