MAKINO C-40 Tool & Cutter Grinder

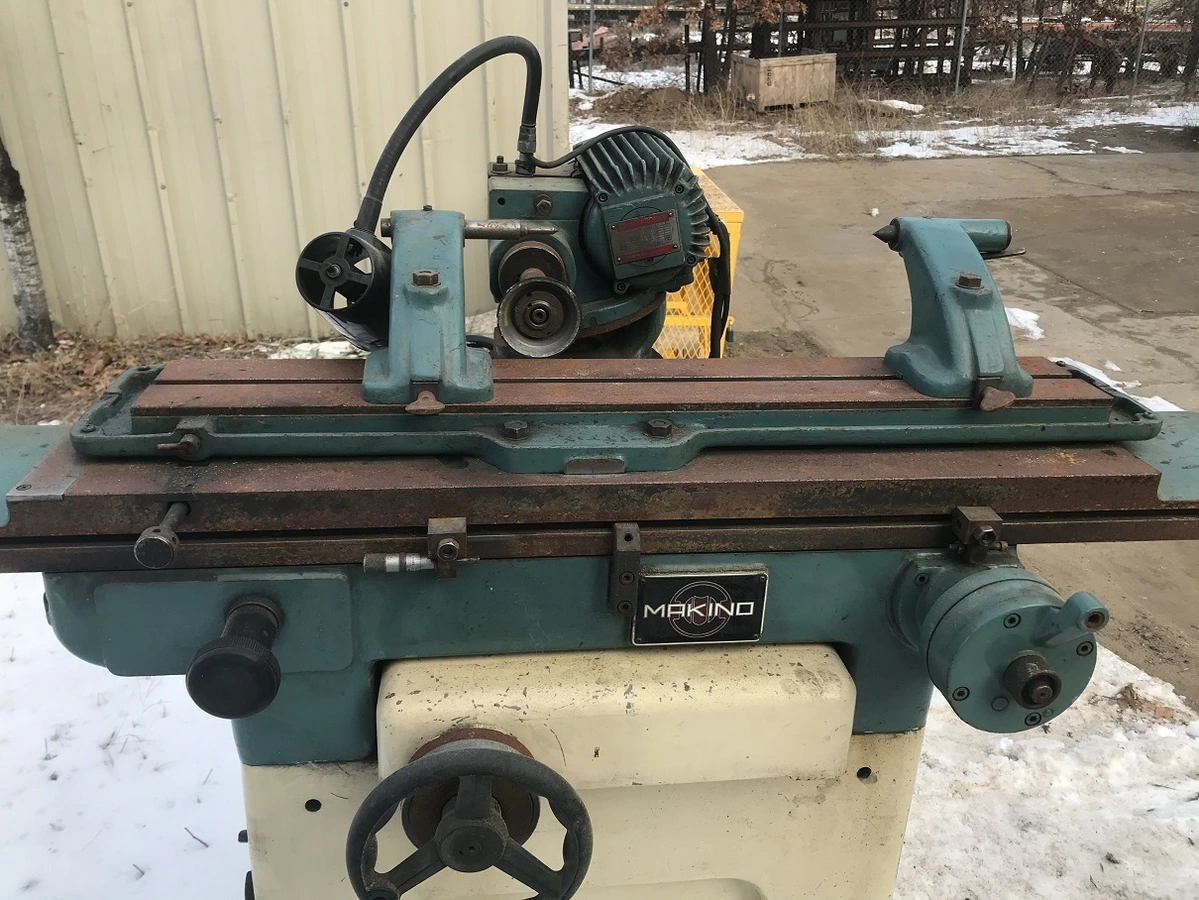

Makino Model C-40 Tool & Cutter Grinder
*** (2) Available ***
Swing Over Table .......................... 10"
Distance Between Centers .................. 27- 1/2"
Distance Between Tailstock & Workhead ..... 22- 3/4"
Range Of Movement:
Table Working Surface ..................... 5-5/16" X 37"
Longitudinal Travel ....................... 16"
Swiveling Angle ........................... 180 Degrees
Cross Movement Of Wheelhead ............... 10"
Vertical Movement Of Wheelhead ............ 10"
Wheelhead Swivels ......................... 360 Degrees
Distance Between Wheel Spindle Center
To Top Of Table Surface .................. 2" Min./12" Max.
Distance Between Wheel Spindle Center
To T-Slot Center ......................... 6- 1/2" Min./16- 1/2" Max.
Grinding Wheel Spindle Speeds ............. (3) 2600, 3700 & 6200 Rpm
Grinding Wheel Spindle Motor ............... 1 H.P.
Approx. Floor Space ........................ 61" X 68-1/2"
Approx. Machine Weight ..................... 2,000 Lbs
