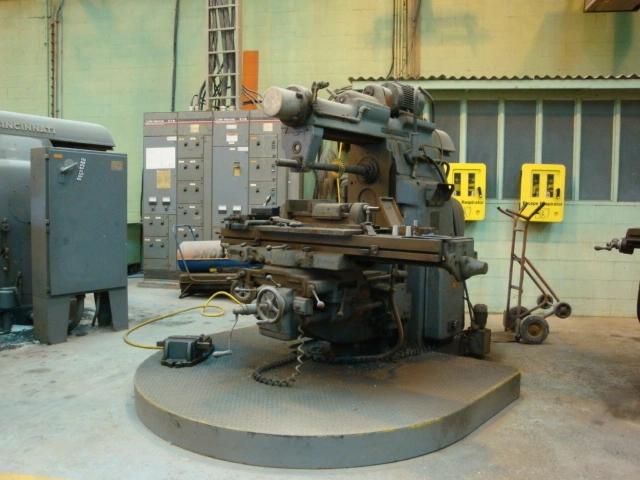

Cincinnati Model 3U Universal Milling Machine
Have one to sell?
ConditionUsed
1 available
50 Taper, Motorized Overarm, Arbor Support, Universal Table
Cincinnati Model 3U Universal Milling Machine
Table Size: 63" x 15"
Cross table travel: 32"
Saddle travel: 10"
Vertical Travel: 29"
Center of Shaft to Bottom of Over Arm: 7.5"
Feeds (24): 24 5/16 to 60
Spindle Speeds: (21) 18-1,300 RPM
Spindle Taper: 50
Overarm Speeds: 100-1,030 RPM
Main Motor: 10 HP
Overarm Motor: 2 HP
Pump Motor: .18 HP
Main Motor Supply: 440 Volt
Equipped with:
Pendant Control
Universal Swiveling Table
One Shot Lube System
Coolant Pump and Piping
Arbor
Arbor Support
Motorized Overarm
