| size | 24" Chuck | 24" Chuck |
| Swing | 37.375" | 949.32 mm |
| Machining Length | 117" | 2,971.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 9.375" | 238.12 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 20.44" | 519.18 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (CNC (Fanuc 6T CNC Control)) | CNC (CNC (Fanuc 6T CNC Control)) |

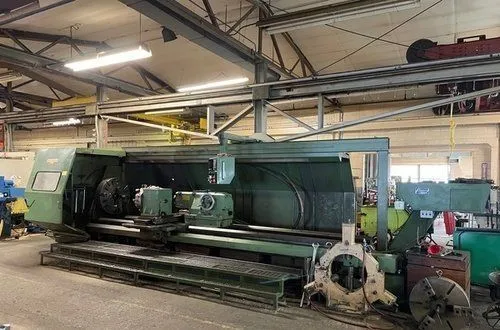

Dainichi M95 Cnc Flatbed lathe
Specifications:
Max. Swing Over Ways 22.8"
Max. Swing Over Carriage 39.7"
Max. Shaft Length 117" With 4-Jaw Chuck
Max. Shaft Weight 13,227 Lbs.
Max. Rpm 1,200 Rpm
Spindle Hp 50
Max. Shaft Weight 3,300 Lbs Without Support of Tailstock
Fanuc 6T Cnc Control
4-Jaw Chuck
8-Position Turret
Tape Reader
Steady Rest
Chip Conveyor
