| size | 16" X 46" | 16" X 46" |

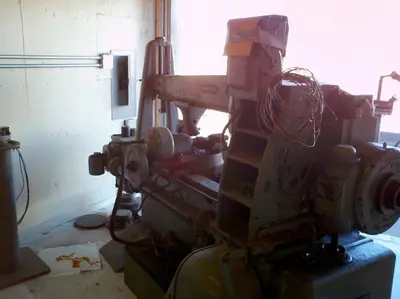

Barber-Colman Type A 16" X 46" Gear Hobbing Machine
Hole In Spindle: 3"
Work O.D.: 16" Max.
Hob Slide Travel: 46" Max.
Coarseness: 6" Dia. Pitch Max.
Helix Angle (L To Right): 45 Degrees Max.
Number Of Teeth: 5 Min.; 600 Max.
Hob Diameter & Length: 5"
Dimensions: 51" x 76" x 92"H
Weight: 6,200 lbs
Complete Set of Change Gears
Operations Manual
Misc. Hobs Available at Extra Cost
