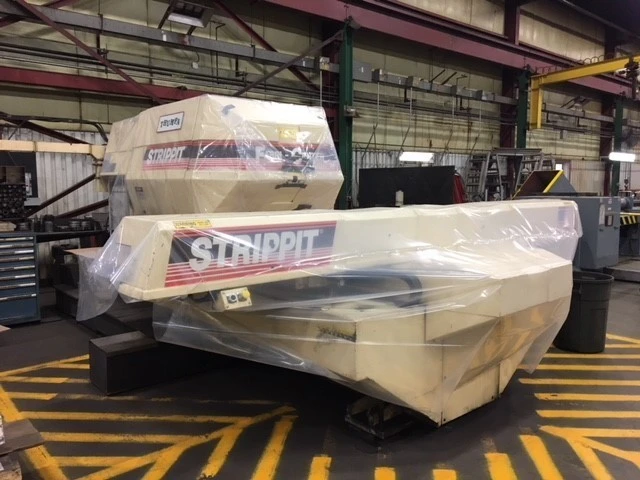

33 Ton Strippit Model 1250M "Fabri-Center" CNC Turret Punch

Strippit Model 1250M "Fabri-Center" 33 Ton CNC Turret Punch
Hydraulic Press Drive
Material Thickness: .375" Mild Steel
Tonnage: 33 Tons
Capacity: .375" Mild Steel: Max Hole Size: 1 1/8"
Capacity: .250" Max. Hole Size 1 5/8" Dia
Capacity: .135" Max Hole Size: 3 1/2" Dia
Capacity: .090 Mild Steel - Max Hole Size 4 1/2" Dia.
Accuracy: +- .004"
Axis Travel :82" X 53"
Work Piece Size: 80" X 51" Repos: 160" X 60"
Air Requirements: 90 Psi At 6.1scfm/.9 Cfm Axis Drives: High Performance o
Turret: Bi-Directional 1.4 Sec Min., 2.5 Sec Max.
Turret Configuration: 42 Station Thick
(20) 1/2"
(12) 1-1/4"
(4) 2"
(4) 3-1/2" A/I
(2) 4-1/2"
Performance: 1" Move - .062 Material - 250 S.P.M.
.062" Move - .030" Material - 415 S.P.M.
Axis Speed: Up To 2500 Ipm
