30" x 15" x 16" Bridgeport Series II Vertical Milling Machine

Bridgeport Model Series II Vertical Milling Machine
Table travel (X-axis): 30"
Saddle travel (Y-axis): 15"
Quill travel: 5"
Knee travel (Z-axis manual): 16"
Ram travel (rack & pinion): 16"
Throat distance (min) (V-Ram): 10.62"
Throat distance (max) (V-Ram): 26.62"
Table to spindle nose gage line: 1"
Max. weight of workpiece: 1000 lbs
Spindle diameter: 2.125"
Quill diameter: 4.25"
Milling feed rate - X & Y axis: 0.375-24 IPM
Milling feed rate - Z axis: 0.1875-12 IPM
Milling rapid feed rate - X & Y axis: 24 IPM
Milling rapid feed rate - Z axis: 12 IPM
Floor area: 80" x 80"
Height: 93"
Shipping weight: 4750 lbs.
Equipped with:

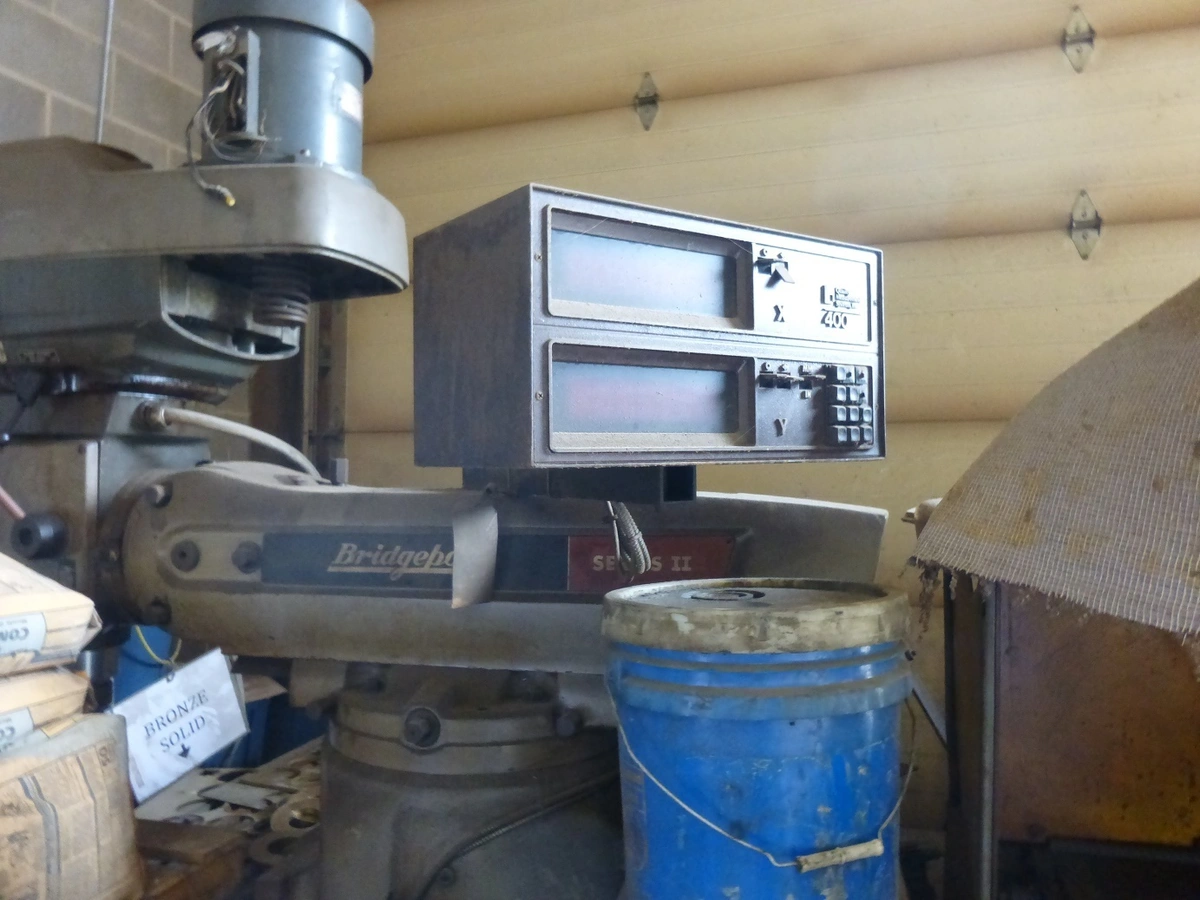

Quality Measurement Systems Model 400 3-Axis DRO
