Viotto RVVV2 CNC 610VHDSP High Precision Double Vertical Head Disc Grinder (2010)

Viotto RVVV2 CNC 610VHDSP High Precision Double Vertical Head Disc Grinder
*
Main Spindle Power (AC): Upper: 40 HP
Lower: 40 HP
Grinding Wheel Diameter: 24"
Spindle Diameter-Front Bearing: 9.05"
Grinding Wheel Peripheral Speed: 0-6880 FPM
Spindle Speeds-Upper & Lower: 0-1095 RPM
(with frequency inverters)
Axis Travel Speeds-Manual Slow: 3.15 IPM
Manual Rapid: 19.7 IPM
Automatic: 19.7 IPM
Wheelhead Infeed Minimum: .000040"
Reciprocation Travel of the Slide: 8.66"
Table Carrier Speed: 0-5.5 RPM
Grinding Wheel Speed During Dressing: Variable RPM
Dresser Spindle Speed: up to 6,000 RPM
Dressing Diamond Roll Dimensions
for Conventional Abrasive Wheels: 4.33" X 0.236"
Dressing Slide Speed: 0-78.4"
Sound Level: Max. 80db as per EC rules
Machine Weight: 23,000 lbs.
Machine Dimensions: 53"x98"x118" (WxLxH)
Main Motor Drive 40 Hp
Electrics 480/3/60
Features:
Automatic Interpolated Dressing Cycle
Reciprocating and Oscillating Workpiece
Plus Plunge of Upper Wheelhead.
Features Interpolated CNC Axis Wheel Dressing and 5 Axis Control

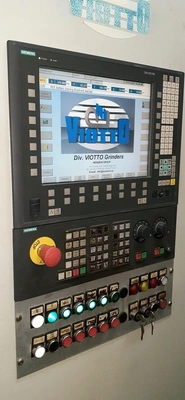

Control: Siemens Sinumerik 810D

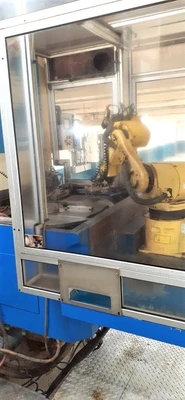

Fanuc Robot System with Vacuum Grippers
Main Motor Drive: 40HP
