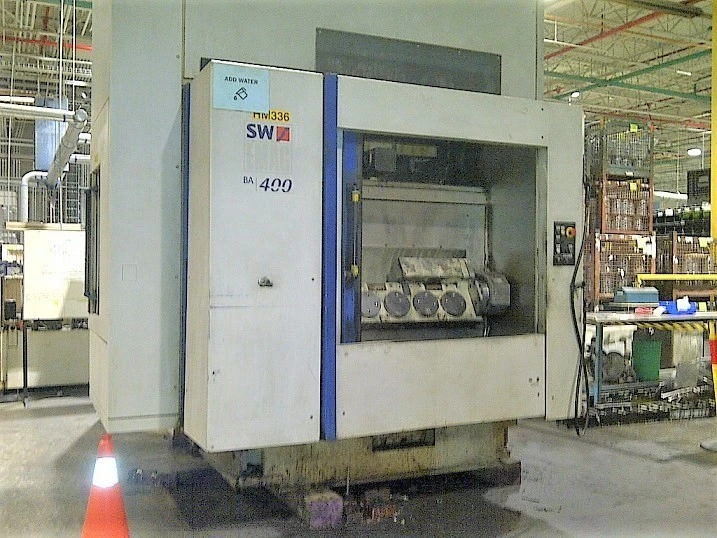

16" x 16" x 16" EMAG (SW) CNC Horizontal Milling & Drilling Machining Center (2008)

EMAG (SW) Cnc Horizontal Milling & Drilling Station,
Model: BA400-2
Specifications:
No. Of Spindles 2
Spindle Arrangement Horizontal, Adjacent
X, Y, Z, 400 mm, 400 mm, 400mm
Gap Between Spindles 400 mm
Main Spindle 70 mm
Feed Rates: X,y & Z Axis 1 - 40,000 mm/min
Tool Rack 2 x 30 Tools
Max. Tool Length 275 mm
Max. Tool Weight 10 Kg
Max. Transport Load 1,100 Kg
Max. Door Opening 1200 mm x 1135 mm
Machine Weight, approx. 30,500 Lbs.
Machine DImensions, Approx. 185" x 118" x 120 Height
Ewuipped With:
Siemens 840D Cnc Control
Coolant with Paper type Separation unit
Chip Conveyor
60 Position Tool Changer
