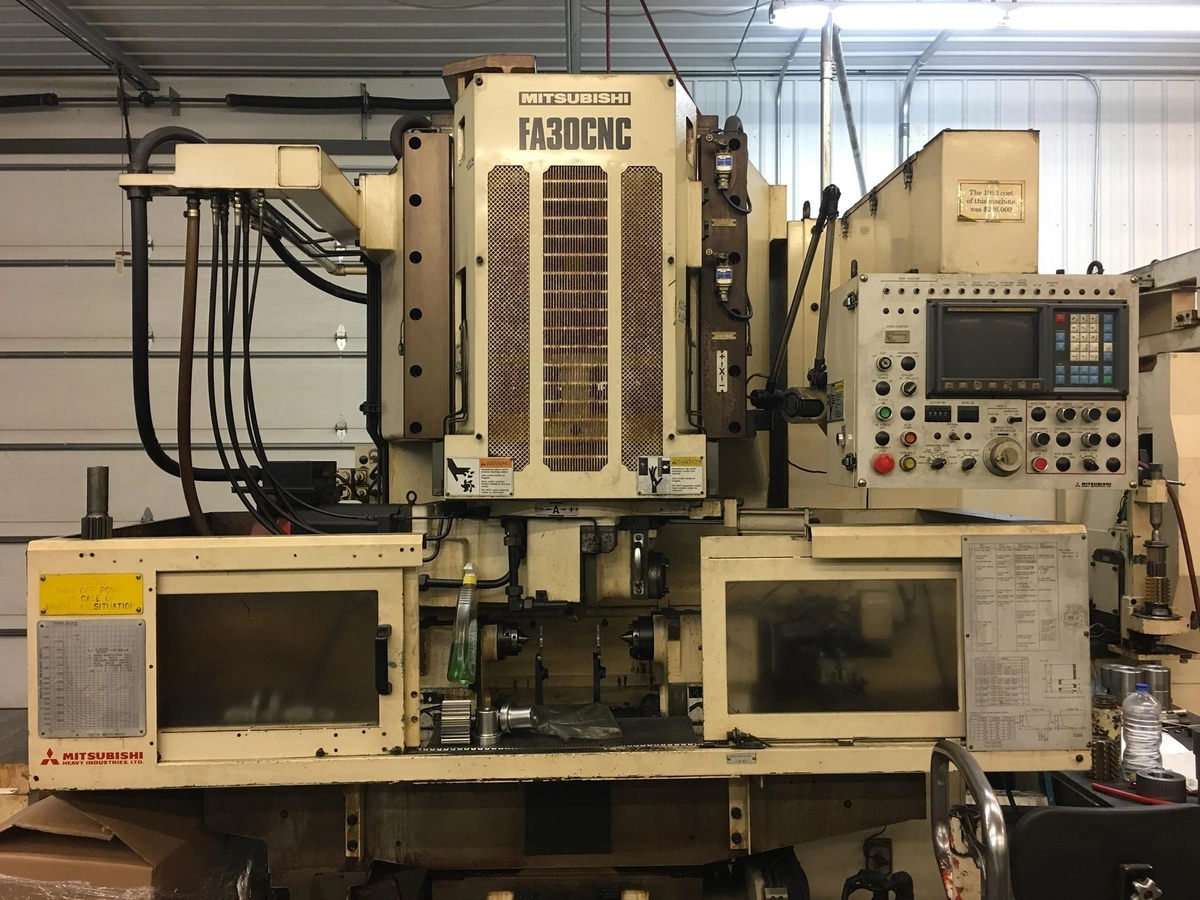

12" x 25.5" Mitsubishi Model FA-30 4-Axis CNC Gear Shaver (1992)
Have one to sell?
ConditionUsed
1 available
12" Max Diam , 3.1DP, 6" max tooth width, Fanuc CNC Control
Mitsubishi Model FA-30 4-Axis CNC Gear Shaver
Max Gear Diameter: 12"
Max Modul: 3.175 DP
Max Tooth Width: 5.9"
Max Distance between centers: 25.59"
Main Motor: 8 HP
Max Cutter Diameter: 9.44"
Max cutter Width: 2"
Cutter Rotary Speed: 40-400 RPM
Cutting Feed Speed: .0039-0984 IPM
Max Swivel Angle: +/- 23 degrees
Table Feed Speed 1.18-11.81 IPM
Table Stroke: 5.9"
Diagonal angle: +/- 90 Degrees
Fanuc 4 axis CNC control
Software for: Plunge , Underpass, Diagonal, Conventional
Precision Centers
Coolant and Filtration system with Magnetic separation
Full Guarding
Books and Manuals
