MORI SEIKI MIU-30

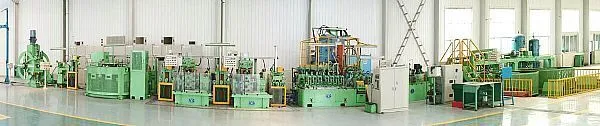

Mori Machinery Corp. MIU-30 Inner Tube Grooving Line
12mm (0.472") Max. tube diameter, 4,000 Metric tons per year output
Specifications (Preliminary)
Tube diameters handled: 7mm, 9.52mm and 12mm (0.276", 0.375" and 0.472").
Maximum tube through-put velocity: 200 Meters per minute 656 FPM
Total output: 4,000 Metric tons per year
Tube welding system: Matsushita Model YC-200-BC1 high-frequency type.
Uncoiler capacity: 1,500mm (59.05") Max. coil O.D. X 400mm (15.75") Max.
Dancer rolls: 4 Sets - constant pressure, 900mm stroke.
Spiral looper: 800 Meters (2,624') Max. accumulated length
Emboss stand: 2 Sets - driven by (2) 15kW inverter duty AC motors.
High frequency welder: Thermatool Model CIF-100 (100KW / 600kHZ).
