| size | 26 x 12 | 26 x 12 |

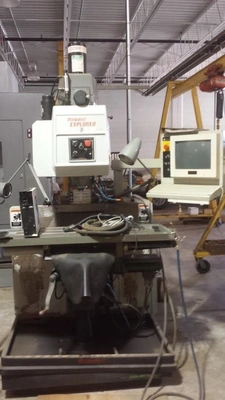

Bridgeport Model Explorer X-26 3-Axis CNC Vertical Mill
Table Size: 12.5" X 34"
Max. Table Load: 300 LBS
X-Axis Travel: 26"
Y-Axis Travel: 12"
Z-Axis Travel: 5"
Throat Distance: 14.5"
Rapid Traverse Rate X & Y Axes: 250 IPM
Cutting Feed Rate All Axes: 0.1 - 250 IPM
Spindle Speeds: 60 - 4,200 RPM
Spindle Taper: ERICKSON QC#30
Spindle Motor: 3 HP
Approx. Dimensions: 62" x 60" x 104"
Approx. Weight: 3200 LBS
Equipped with:
Bridgeport DX-32 CNC control, with RS232 and disc drive.
14" Color monitor.
Programmable spindle speeds.
Programmable spindle brake.
Miscellaneous tool holders.
Coolant system with catch pan.
Work light.
