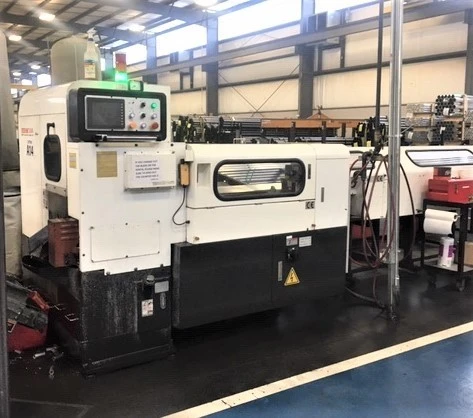

Kentai Model KTC-100 NFC High Speed CNC Carbide Saw (2016)

Kentai Model KTC-100 NFC High Speed CNC Carbide Saw (2016)
CNC, Non Ferrous, Carbide
Specifications and Equipment
Round Bar: 10 \ 100 mm / 0.3993 \ 3.937 in
Square Bar: 10 \ 80 mm / 0.3993 \ 3.149 in
Round Tube: 10 \ 100 mm / 0.3993 \ 3.937 in
Square Tube: 10 \ 80 mm / 0.3993 \ 3.149 in
TCT Carbide tipped sawblade: 355 x 2.0 t mm
Sawbilade feeding: Pivot-arm type / AC servo motor + Ball-screw
Main vise : One horizontal / One vertical / Hydraulic
Sawblade rotation speed : 1600 \ 4000 rpm Variable speed via frequenr
Main Motor: 11.25 kw (15Hp) / 2p / 240V 60Hz 3 Phase
Features:
Saw head drive forward equipped with an AC servo motor and ball screw.
Driving motor of spindle is 15Kw (20hp) / 4p, no
torque lost under low speed and variable speed via frequency inverter.
Motion controller system uses a PLC modular
control unit, 100% signal communication with no loss, error auto detect
and self diagnosis functions. High resolution
colour POD (Programmable Operation Display) provides display and inputting
data by touching on screen. Gripper Feed Carriage (GFR) system is driven
by an AC servo motor that cooperates with ball screw, reliable repeated
positioning, set cut-off measurement form display panel
only. Functin of multiple length can be set up for different cut-off
lengths and quantities.
