13.8" x 9.8" x 8.6" Mitsubishi Model FA10SM 5-Axis CNC Wire Type Electrical Discharge Machine (2004)

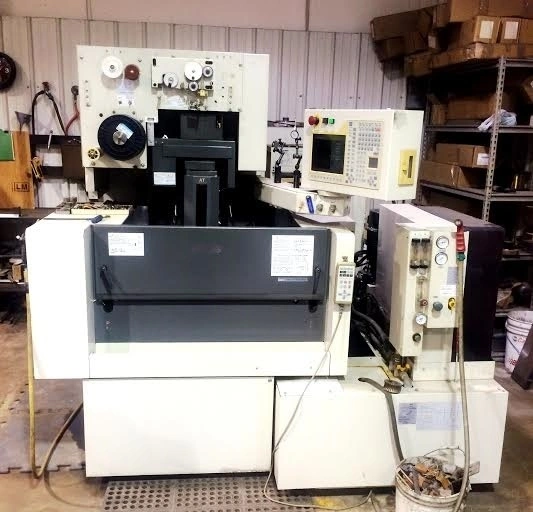

Mitsubishi Model FA10SM 5-Axis CNC Wire Type Electrical Discharge Machine
Max. Workpiece Dimensions: 31.4" X 23.6" X 8.4"
Max. Workpiece Weight: 1100 Lbs.
Machining Range (X/Y/Z): 13.8" X 9.8" X 8.6"
Taper U-V Travel: 1.25 X 1.25"
Taper Capacity: +/- 15 Deg. In 4.0"
Resolution: 0.000002" (2 Millionths)
Table Rapid Traverse Speed: 51.2" Ipm
Wire Feed Diameter: 0.004" To 0.012"
Minimum Wire Thread Start Hole: 0.020"
Wire Tension: 50 To 2,500
Wire Spooling Speed: 0 To 11.8"/Sec.
Dielectric System Dimensions: 40.1" X 60.6" X 59"
Dielectric System Weight (Dry): 770 Lbs.
Filter Tank Capacity: 116 Gallons
Approx. Overall Dimensions: 60.6 X 65.6" X 75.9"H
Approx. Weight: 4,400 Lbs
Equipped With:
Mitsubishi 64-Bit Cnc Control & Power Supply
Color Crt W/3-D Graphics
Advanced Pendant Control
Submersible Machining
Automatic Fluid Level Control
Automatic Wire Threading
Linear Motion Guideways
Direct Drive 25mm Ball Screws
Ac Servo Drives
Linear Glass Scales
Fine Resolution Encoder Feedback
Auto Oiler
Filtration System
Chiller
