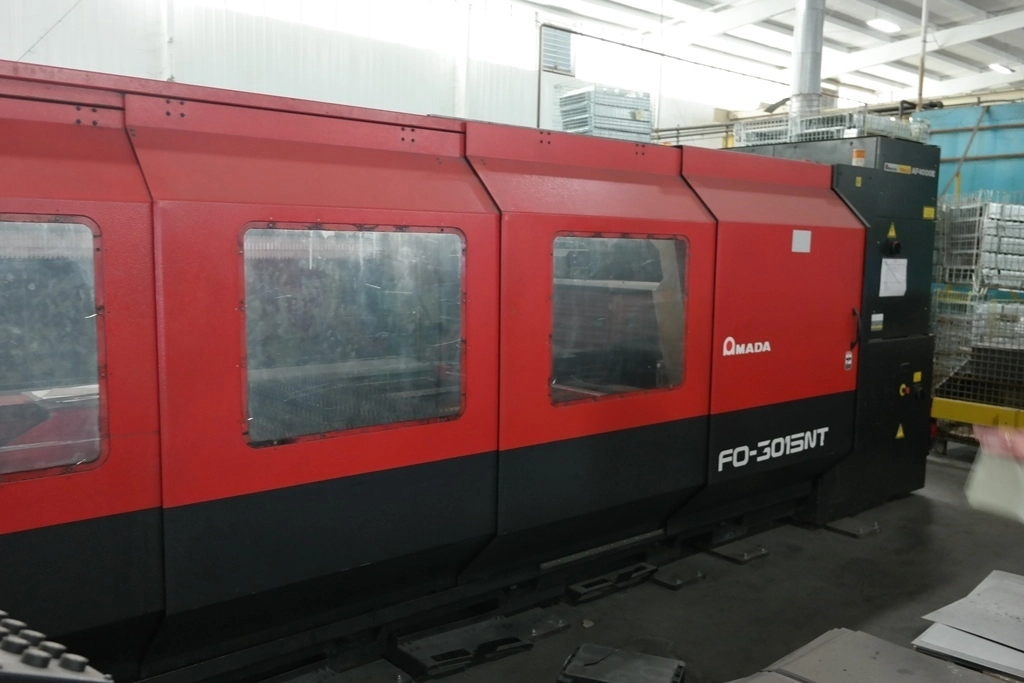

4000 kW Amada Model LC 3015 F0 NT Series CNC Laser System with LST Shuttle (2006)

Amada Model LC 3015 F0 NT Series 4000 kW CNC Laser System with LST Shuttle

3-Axis Linear Motor Drive Laser Cutting System
Wattage Capacity: 4000 kW
Max Mass of Load: 2028 Lbs
Max Cutting Speed: 2362 IPM
Acceleration: X,Y: 1.5 G/ Z 3.0 G
Maximum Work Area: 121" x 61" x 3.94"
Maximum Sheet Size: 120" x 60"
X-Axis Range: 129"
Y-Axis Range: 61"
Cutting Head: Cartridge Type
Z Axis Sensor: HS-2000 (Anti Plasma Noise Resistant)
Laser Oscillator: Fanuc AF4000i-B
Maximum positioning speed (Rapid): 4724 IPM
Maximum positioning speed (Rapid): 4724 IPM
Maximum positioning speed (Rapid): 4724 IPM
Simultaneous X Axis + Y Axis: 6681 IPM
Power Requirements: Machine 51 KVA/ Oscillator 55 KVA/ Chiller 27 KVA
Machine Weight: 27000 LBS
Laser production cutting specifications for Fanuc AF4000i-B Oscillator
CW Power: 4000 watts
Peak pulse power: 5000 watts
Maximum material thickness (not to exceed weight limitation of cutting tab
Carbon steel: 0.875"
Stainless steel: 0.500" "CleanCut"
Aluminum: 0.375"
Hours: 28,748
Equipped With
AMNC-F 32 bit CNC Control, Laser Oscillator, Fanuc AF4000i-B
LST Shuttle Table 60" x 120"
¯
