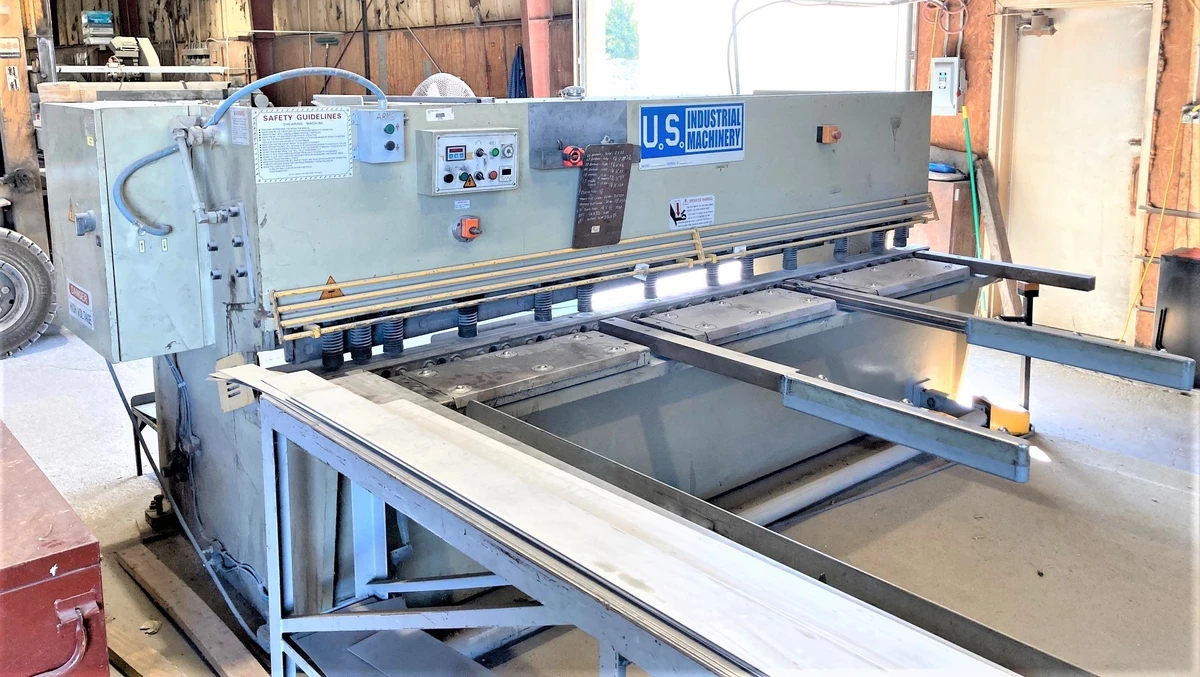

.250" x 10' US Industrial US1025PMS Hydraulic Shear (2008)

.250" x 10' US Industrial US1025PMS Hydraulic Shear (2008)

Hydraulic, Front Operated Power Back Gauge
Specifications
Sheet Size: 126"
Shearing Capacity: 1/4" Mild Steel @ 65,000 PSI
Throat Depth: 4.7"
Shear Angle: 1 Degree 30'
No Load Strokes: 14
Adjustment Range of Back Gauge: 0.75" - 36"
Standard Equipment:
Front Operated Power Back Gauge, Squaring Arm, Front Supports, High
Carbon, High Chrome Shear Blades, Ball Transfers on Each Table
Segment, Manual Quick Change Blade Gap Adj. Squaring Arm, 39.5"
from blade to end, Stroke Counter, Front-controlled Power Back Gauge
Blade Guard, Micro Switch Protected Hydraulic, Electrical Overload
Protection Automatic Swing-up on Back Gauge, Bolt on table
segments&quantity of 3, Hold-downs faced w/anti-mar neoprene, Swing
Beam Design, Pressure Sensing Hold Downs, Electric Stroke
Adjustment, Operator Control Console
