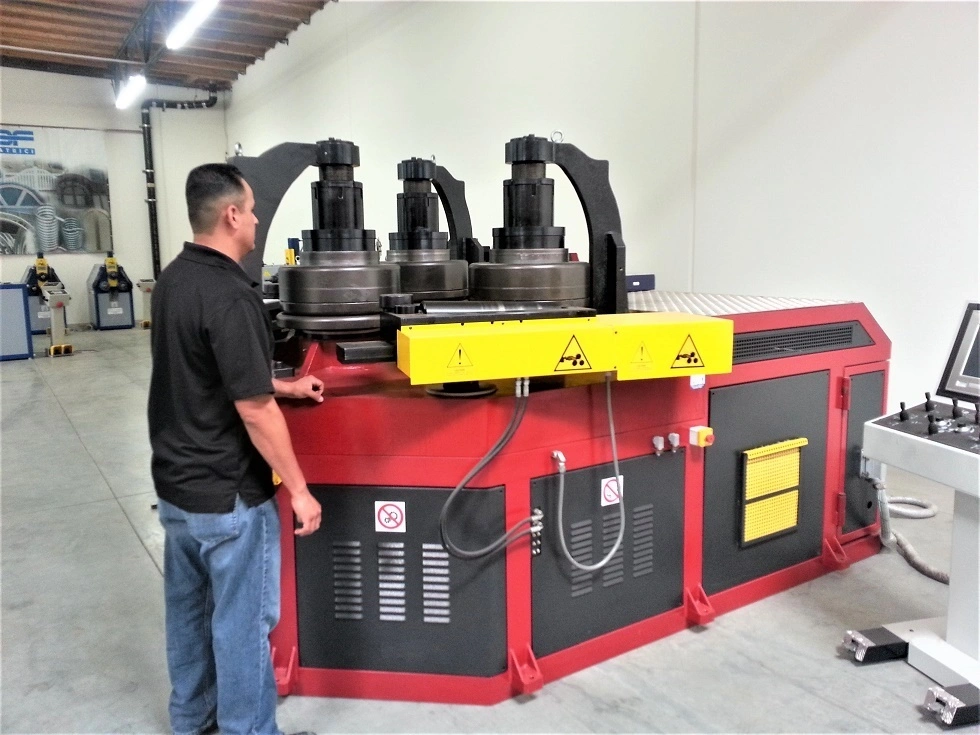

Tauring Alpha 200CNC Angle Bending Roll (2015)

Tauring Alpha 200CNC Angle Bending Roll (2015)

10" x 10" x .40 Square, 10" x .5" x 87min Radius, CNC Control
Specifications (Preliminary)
Round Tube: 10.75" x 0.5" / Min. Radius: 87"
Square Tube: 10" x 10" x .40" / Min. Radius: 80"
Flat Bar (Hard Way): 10" x 2.3 / Min. Radius: 32"
Angle (Leg Out): 7.8" x 7.8" x 0.78" / Min. Radius: 78"
H Beam: IPE 330 / Min. Radius: 75" PLEASE NOTE - MINIMUM RADII SHOWN
SHOWN MAY REQUIRE MULTI- PASS
Driven Rolls: 3
Shaft Diameter: 490mm
Standard Shaft Working Length: 15.75"
Shaft Revolutions Per Minute: 7.1 R.P.M.
Main Motor Motor: 24.1 HP
Dimensions / Weight:
Current Electrics: Voltage - 230 Volt/3 Phase/60Hz and 480 /3 /60Hz
Equipped With:
Alpha200CNCi, HE Device, Hydraulic Roll Adjustment,
Universal Tool Set - 1 Set
