15 Ton Michigan Double Girder Top Running Overhead Crane (1989)

Michigan 15 Ton 27' Double Girder Top Running Overhead Crane
15 ton x 27'
Total Weight: 15,000 to 18,000 Lbs. (appox.)
Type: Top running Double Girder
Bridge Runway rail: 40# ASCE
Lift: 25 ft.
Lift Speed: 14/5
Span: 27' 6.5"
Trolley speed (max) 60 FPM
Bridge speed (max) 125 FPM
Total height: Top of bridge runway rail to top of trolley- 3' 4"
Volt: 460/3/60
Bridge S/N 89-1316
HOIST S/N 84E5515
Equipped With:
Pendant Control
Crane Rail: Optional

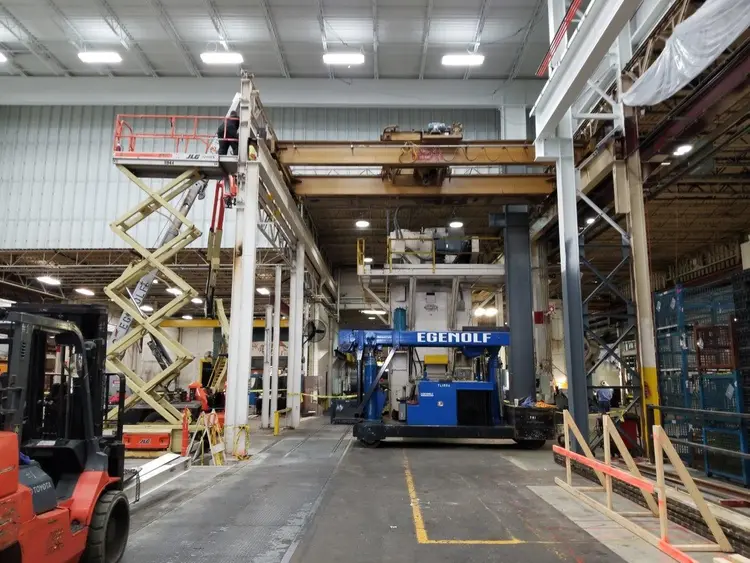

Crane rails mounted on beams taken down during the building project with
with the crane
(5) ASCE 40 Lb. rails mounted to W24 x 94 lb. runway rail support beams
26'ft. long
(1) same as above except 21.5 long
(1) same as above except 26.4 long
