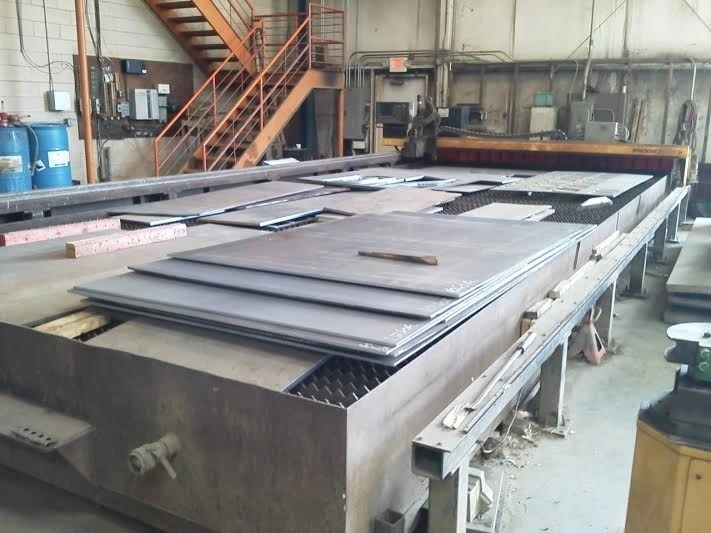

ESAB Shadow 2-10 VIS PC Dual Side Plasma Cutter
Have one to sell?
ConditionUsed
1 available
Esab Model Shadow 2 Dual Side Drive Gantry Style Cutting System
Cutting Width: 136" (3454 mm)
Machine Width: 179" (4546 mm)
Rail Gauge: 153" (3886 mm)
Internal Clearance: 143" (3632 mm)
Positioning Accuracy: +/- 0.025" (.63 mm)
Repeatability: +/- 0.015" (.38 mm)
Speed Range: 2 - 750 ipm (50 - 19050 mm/min)
Maximum Plasma: 1
Maximum Stations: 4
Parking Area: 36" (914 mm)
Machine Height: 65" (1651 mm)
Power Requirement: 230 VAC, 50/60 Hz, Single Ph
3 Axis Gantry with Rack-and-Pinion Drives
Heavy-Wall Steel Box Beam Design
Precision Hardened Round-Rail
Cross Beam Guiding System
Precision Heavy-Duty Gearboxes
for accuracy and long life
Digital AC Drive Amplifiers for
years of maintenance free operation
AC Brushless Motors for Smooth,
Accurate Motion
Maximum Machine Speed: 750 ipm
(19050 mm/min)
Cross Axis Powertrack Hose &
Cable Carriers
Handles up to 4 inch thick (100
mm) material.
Positioning Accuracy: +/- .025"
Repeatability: +/- .015
Heavy Duty Welded Pedestals with Leveling Adjusters
Tubular Steel Rail Support For Strength and Rigidity
Hardened Round Rail for Smooth Motion and Durabiilty
Precision Drive Rack
Aluminum Extrusion Rack and Rail Mount
