122" x 63" x 16" EAM Model CTEC-3P 3-Axis Single Head Gantry Type CNC Contour Milling Machine (2005)

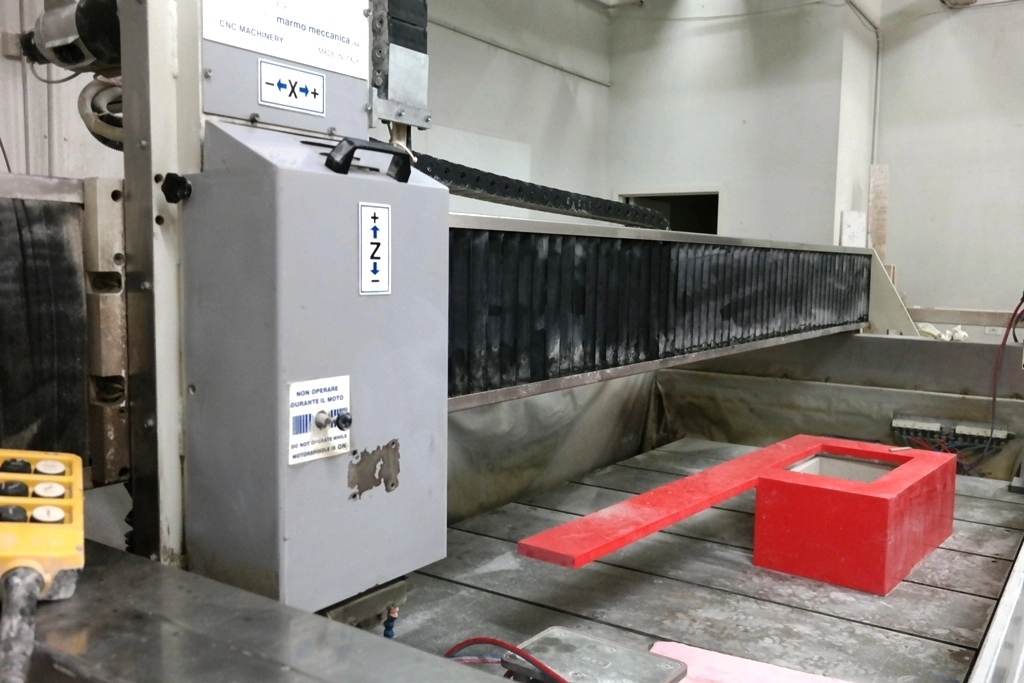

EAM CTEC-3P 3-Axis Single Head Gantry Type CNC Contour Milling Machine
Photo Link
www.assetexchangeinc.com/store/item.asp?ITEM%ID=4446&DEPARTMENT%ID=83
Built in Italy
Work Area: 122" X 63"
Z-Axis Travel: 12"-16"
Power Motor Spindle: 7.5 HP at 3000 RPM
Spindle Rotation Speed: 6000 RPM
Power Supply: 220/380 V 50/60 Hz
Total Installed Power: 15 HP
Attack Tool Spindle: ISO 40
Maximum Tools: 5"
Water Consumption: +/- 30 lt / min.
Sound pressure level: max 85 dB (A)
Sound power level: 95 dB (A)
Locking System Materials with Suckers
Current Electrical Arrangement: 220/30/60
EAM 3 Axis CNC Control
Hours of Operation: 4918
