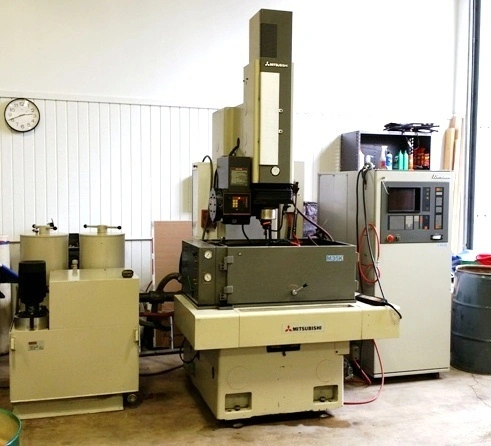

Mitsubishi Model M35K Sinker Type Electrical Discharge Machine (1989)

Mitsubishi Model M35K Sinker Type Electrical Discharge Machine
Table Size: 27.56 X 19.69
Max. Workpiece: 29.53 X 19.69 X 8.27
Max. Workpiece Weight: 1,100 Lbs
Work Tank Size: 31.5" x 21.65" x 12.2"
Outside: 35.43 X 24.02 X 14.96"
Inside: 31.50 X 21.65 X 12.20"
Travels (X): 13.78"
Travels (Y): 9.84"
Travels (Z): 9.84"
Main Spindle Stroke: 9.84"
Electrode Mount: 11.81" X 9.84"
Max. Electrode Weight: 165 Lbs
Dielectric Capacity: 66 Gallons
Ms5kc4 With C-Axis Column-Up:
Daylight @ 0: N/A
Daylight @ 5.91: 18.46 - 8.62
Daylight @ 9.84: 22.40 - 12.56
Proper Height: @ 0: N/A
Proper Height @ 5.91: 104.33
Proper Height @ 9.84: 108.27
Complete With
Mitsubishi C4 Control System
