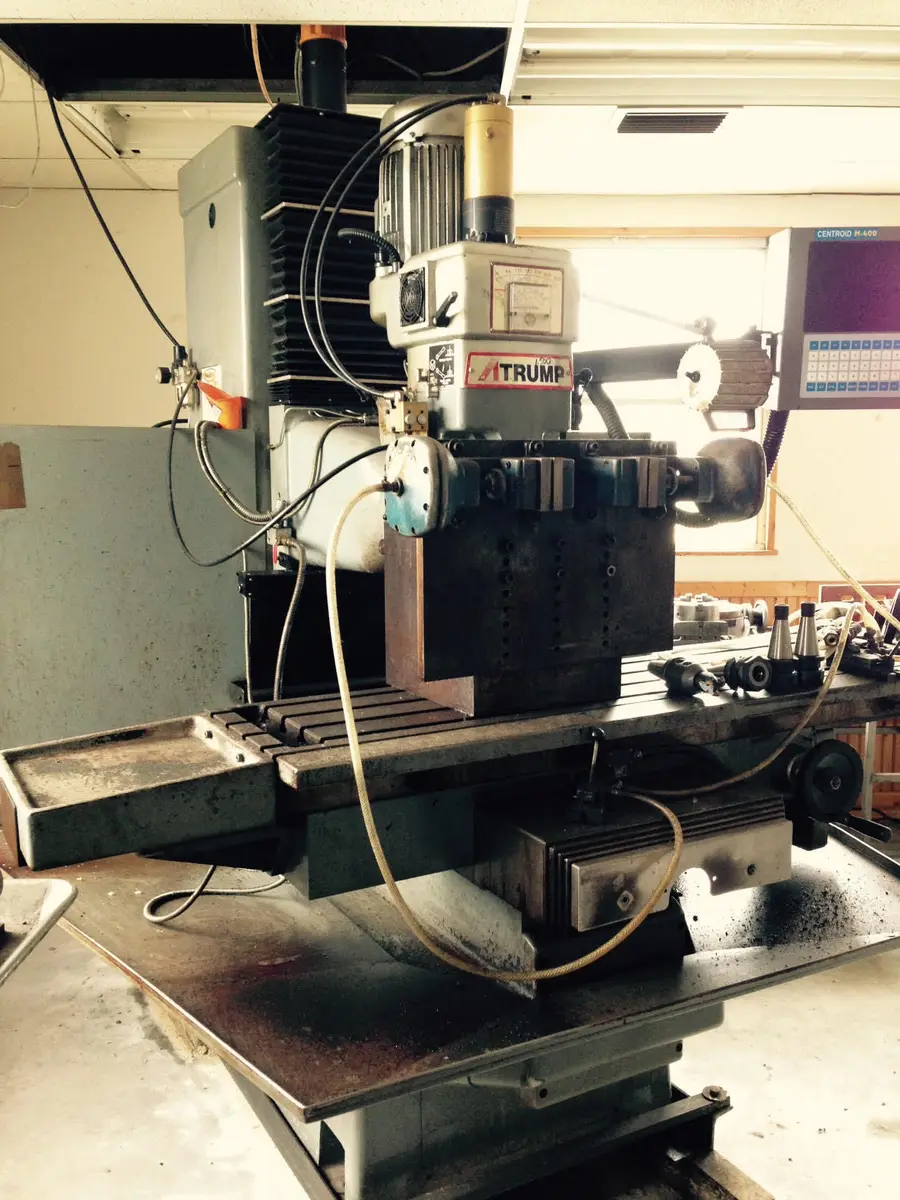

ATRUMP Model B6FC CNC Bed Type Mill (2000)

ATRUMP Model B6FC CNC Bed Type Mill
Table Size: 58" X 13"
Table Load Capacity: 2,000 Lbs.
X-Axis Travel: 39"
Y-Axis Travel: 22"
Z-Axis Travel: 20"
Quill Travel: 6"
Spindle Motor: 6 HP
Spindle Speeds: 80 - 4200 RPM
Spindle Taper: #40
Machine Weight: 6,200 Lbs.
Equipped with:
Centroid M400 Control
LCD Screen RS232 & Ethernet Ports
Linear & Circular Interpolation
Two Or Three Axis, Rotate Or Mirror
Cam Or G-Code Files & Much Much More!
Ball Screws & Servo Motors For X,Y & Z Axes
Spindle Drive
Handwheels
Torque-Rite Power Draw BAR
Hardened & Ground Box Ways
Automatic Lubrication System
