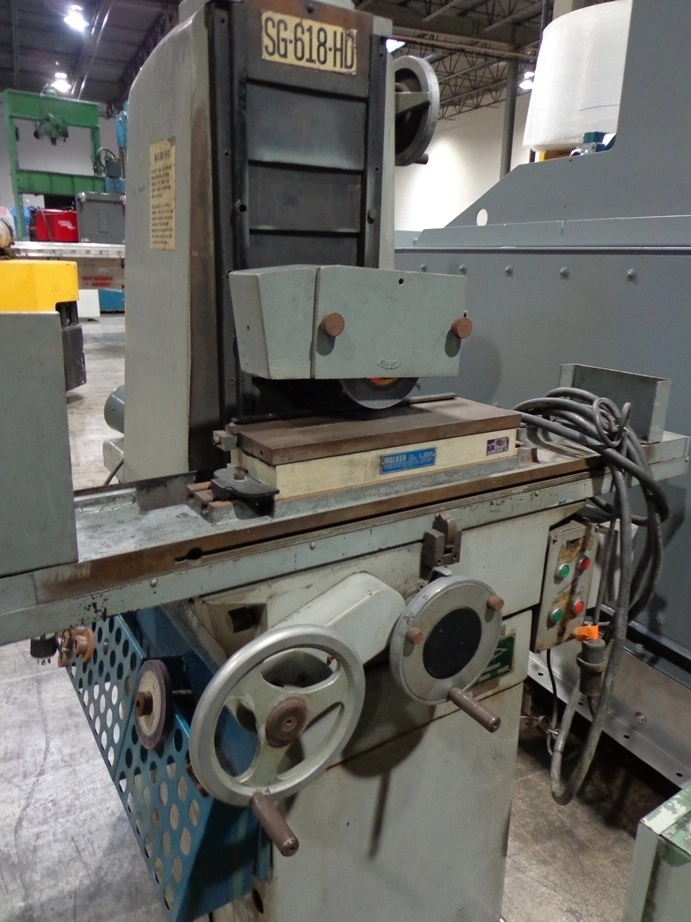

6" x 18" KBC Model SG618-HD Hand Feed Surface Grinder
Have one to sell?
ConditionUsed
1 available
6" x 18" Walker Fine Line Electro Magnetic Chuck
KBC Model SG618-HD 6" X 18" Manual Surface Grinder
Table Working Surface: 6" x 18"
Max. Table Travel: 6-1/2" x 18-1/2"
Max. Distance Spindle to Table: 15-3/4"
Max. Grinding Wheel Size: 8" x 1/2" x 1-1/4"
Spindle Speed: 3,600 RPM
Spindle Motor: 2 HP, 3 PH
Voltage: 230V
Downfeed Handwheel Per Rev.: .050"
Downfeed Handwheel Per Grad.: .00025"
Crossfeed Handwheel Per Rev.: .200"
Crossfeed Handwheel Per Grad.: .0008"
Net Weight: 1,600 lbs.
Complete With
Walker LBP 6" x 18" Fine Division Electromagnetic Chuck
