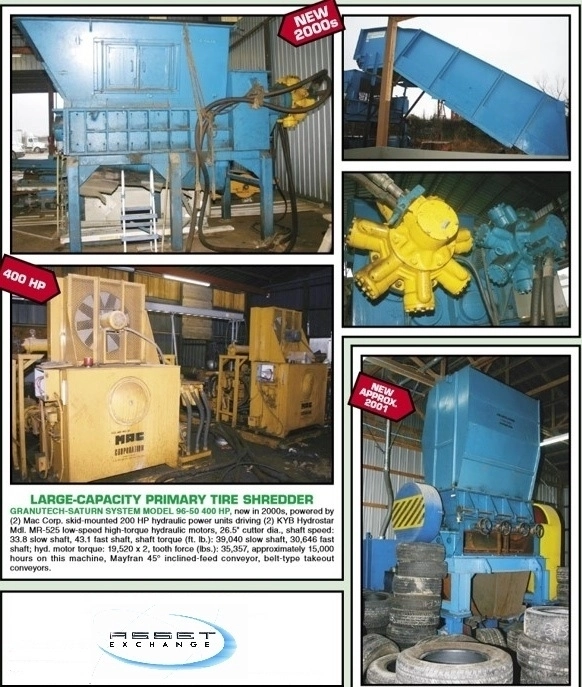

Granutech - Saturn System Model 96-50 400 Material Shredding System (2001)

Granutech - Saturn System Model 96-50 400 Material Shredding System
Contact Our Office at 773-866-9600 For Full Details of this Rarely
Available System
Specifications (Preliminary)
Cutter Diameter: 26.5"
Shaft Speed: 22.8 slow shaft, 43.1 fast shaft
Shaft Torque: 39,940 ft. lbs. slow shaft
Shaft Torque: 30,646 ft. lbs. fast shaft
Hyd. Motor Torque: 19,520 x 2 tooth force lbs.
Main Motor Drive: 200 HP
Equipped with:
(2) Mac Corp. Skid-Mounted 200HP Hydraulic Power Units Powered by
MR-525 Low Speed High Torque Hydraulic Motors Mayfran 45"
inclined feed conveyor, belt-type take out conveyors Approx. 15,000 Hours
conveyors Approx. 15,000 Hours on machine
This "Rip and Tare" system can be used for plastic, wood, metal,
and other commercial and municipal waste.
Large Capacity Secondary Granulator
Kompass Model M500/1600 New 2004
Main Motor Drive: 223 HP
Rotor: 20" dia x 63" Length
Rotor Knives: 9 (3" x 20")
Bed Knives: (3"W x 20" L x Height 1 1/8" High
Feed Opening: 63" x 28"
Radial Dbl
Row Self Aligning Bearings
Speeds: 214 RPM (Rotor Revs)
