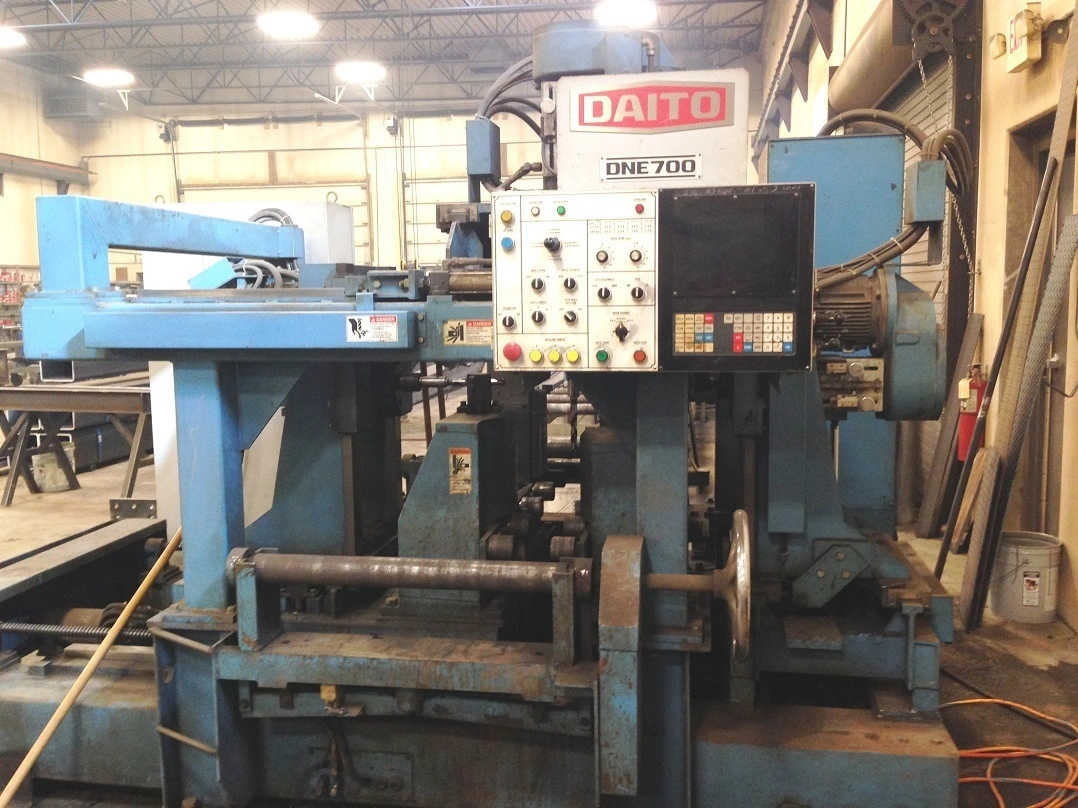

Daito DNE-700 CNC Beam Line (1999)

Daito Model DNE700 CNC Beam Drilling System
Specifications (Preliminary)
Maximum H Beam size: 28" x 12"
Minimum H Beam size: 6" x 3"
Work length - Mimimum: 60"
Maximum material thickness - Flange: 2"
Maximum material thickness - Webb: 2-1/8"
Drilling Range on Upper Drill Head: 1/2" - 1-5/16"
Drilling Range on Left & Right Heads: 1/2" - 1"
Equipped with 3 Drilling Heads: Left / Upper / Right
Spindle Taper on Left & Right Heads: # 3 Morse Taper
Spindle Taper on Upper Head: # 4 Morse Taper
Stroke of Spindle - Upper Head - Height direction: 0.6" - 14.75"
Stroke of Spindle - Left & Right - Width direction: 1.57" - 24.2"
Drilling Head Spindle Motor HP - all three heads: 5 HP 3.7 Kw
Hydraulic Tank Capacity: 10.3 US Gallons
Coolant Tank Capacity: 11.1 US Gallons
