22 ton Nisshinbo Model HTP-1000 22 Ton CNC Turret Punch (1998)
Have one to sell?
ConditionUsed
1 available
22 Ton, (2) Auto Index, PAL510T CNC Control, Misc Punches and Dies

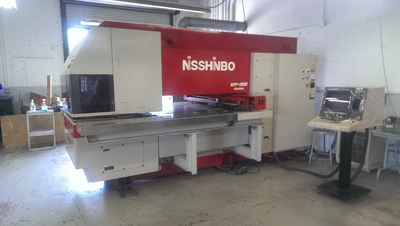

Nisshinbo Model HTP-1000 22 Ton CNC Turret Punch
Tonnage Capacity: 22 Tons
Maximum Material Thickness: .250"
Maximum Hole Capacity: 3.5"
Maximum Workpiece Size: 40" X 48"
Hits Per Minute (1" Moves): 220
Maximum Axis Speed: 1600 IPM
Tooling Capacity: 22 Station (Thick Turret)
Equipped with:
PAL-510T CNC Control W/ Color Monitor
RS-232C Communcation Port
Multi-Tasking Capability
Graphic & Macro Programmings
Hydraulic Servo Press Drive
22 Station Thick Turret (Amada Style)
(2) 3-1/2" Auto Index Stations
Auto Repositioning
