Single Spindle, Vertical CNC

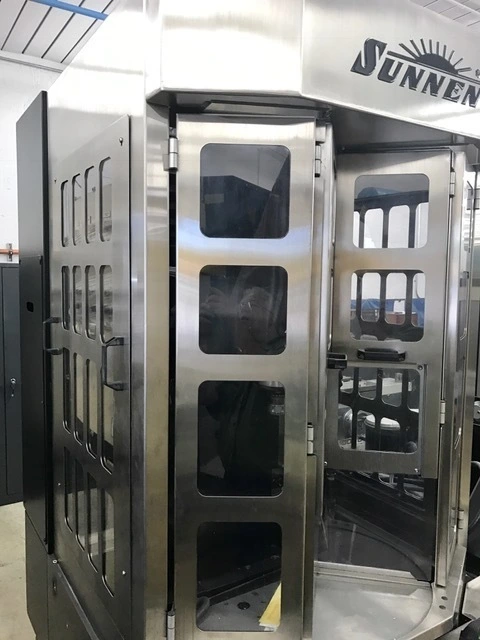

Sunnen Model SV-1010 Single Spindle CNC Vertical Hone
Stroke travel: up to 24.8"
Spindle Speed Range: 100-4,000 RPM
Stroke Speed Range: 40-400 SPM
Spindle Power: 7.5 HP
Feed: computer controller linear with abrasive load sensing features
Stroking system power: 10 HP
Rigid cast iron columns on a cast composite base
Machine weight: 4,750 lbs
Shipping Dims: 64" x 74" x 104" tall
Electrics: 400/460/3/60
Equipped With
Misc Diamond Tooling
Coolant System Dimensions: 48" x 57" x 42" Rear Mount
