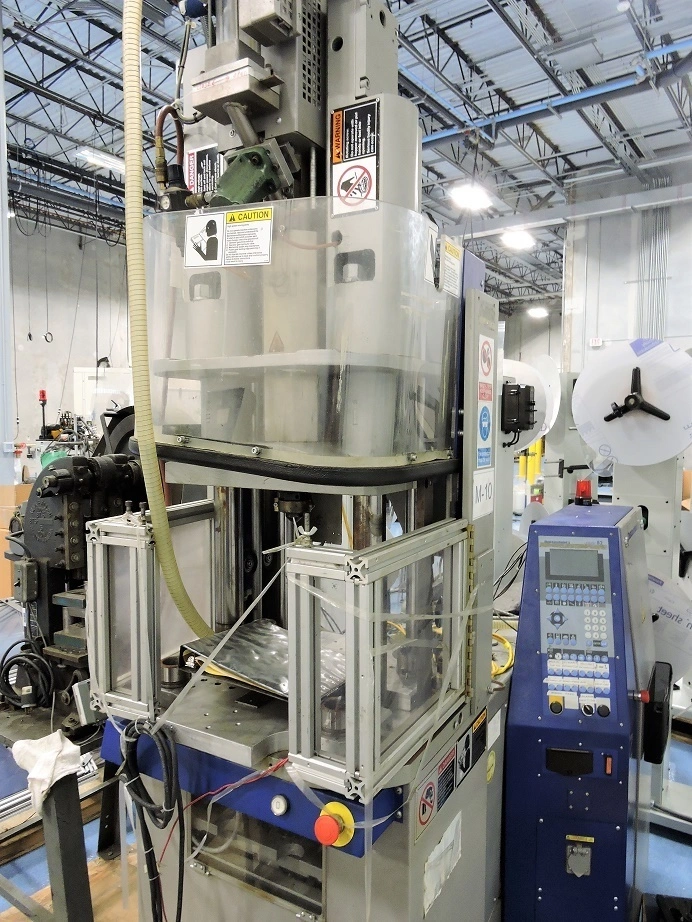

Battenfeld Model Plus-V 350/75 Vertical Injection Molder (2003)

Battenfeld BA-350 CD Plus 35 Ton Plastic Injection Molding Machine
Preliminary Specifications
Clamping force: 35 Tons
Distance between tie bars (h x v): 11" X 11"
Mould opening stroke: 12"
Mould height min.: 6"
Max daylight: 4718"
Hydraulic ejector - stroke: 3"
Ejector force forward/backward: kN
Screw diameter: 0.9"
Injection pressure: 2.150 bar
Stroke volume: 60 ccm
Shot weight, PS: 54 g
Electric and Hydraulic Equipment
Nominal capacity of pump motor: kW
Installed heating capacity: kW
Adjustable barrel heating zones:
Dry cycle time: sec
Reservoir capacity: ltr.
