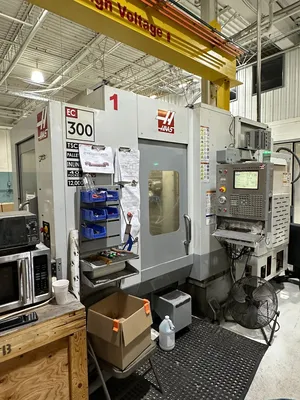

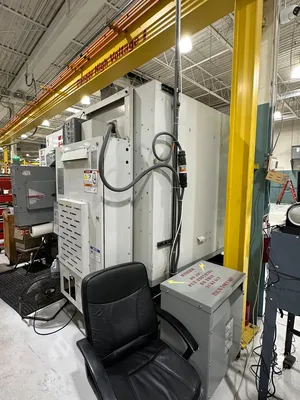

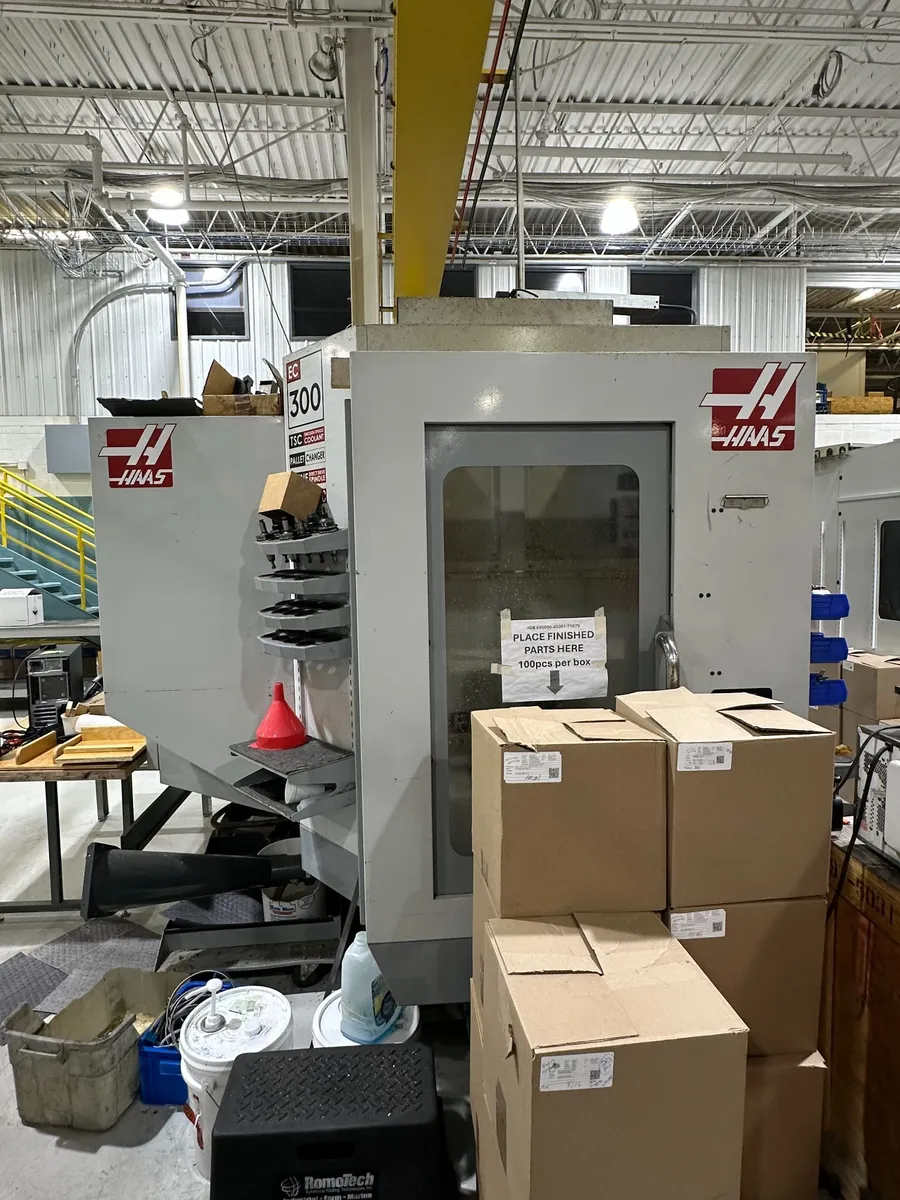

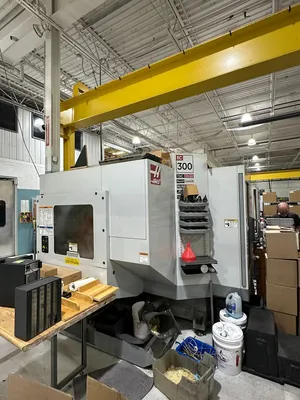

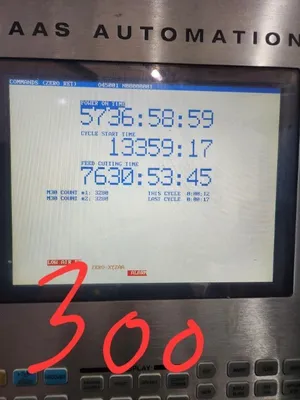

Haas EC-300 Horizontal Machining Center (2006)
Have one to sell?
ConditionUsed
1 available
Haas EC-300 Horizontal Machining Center (2006)
Haas EC-300 Horizontal Machining Center (2006)
Axis Travels & Work Envelope
The EC-300's travel parameters are optimized for efficient, rapid movements over a compact machining area:
• X-Axis Travel: 20.0 in (508 mm)
• Y-Axis Travel: 18.0 in (457 mm)
• Z-Axis Travel: 14.0 in (356 mm)
• Spindle Center to Pallet Surface: 2.0" to 20.0" (51 to 508 mm)
• Spindle Nose to Pallet Centerline: 4.0" to 18.0" (102 to 457 mm)
Twin-Pallet System & B-Axis
The automated rotary pallet changer handles tight high-volume turnaround setups:
• Pallet Dimensions: 11.8" x 11.8" (300 mm x 300 mm)
• Number of Pallets: 2
• Max Weight on Pallet: 550 lbs (250 kg) per pallet
• Pallet Change Time: ~4.7 seconds
• Pallet Indexing (B-Axis): Standard configuration provides 1-degree index resolution. A full continuous 4th axis (0.001-degree) was available as a factory upgrade option.
Spindle & Tool Changer Specs
The 40-taper platform can be found configured with different speed packages depending on the exact manufacturing year (primarily built between 2004 and 2014):
• Spindle Taper: CAT 40 / CT 40
• Spindle Speed Options:
• Standard inline-drive: 8,000 RPM
• Optional high-speed inline direct-drive: 12,000 RPM
• Spindle Power: 20 HP (14.9 kW) vector drive system
• Spindle Torque: 75 ft-lb @ 1,400 RPM
• Automatic Tool Changer (ATC): Standard 24-station side-mount tool changer (upgradable to 40 stations).
Feedrates & Motion Performance
High-efficiency linear paths ensure minimized air-cut times during operation:
• Max Cutting Feedrate: 500 ipm (12.7 m/min)
• Rapid Traverse Rates: 1,000 ipm (25.4 m/min) on X, Y, and Z axes
• Axis Thrust (Max): 2,550 lbs (11,343 N)
Physical Machine Footprint & Facility Requirements
Because of the clearance needed for the rotating twin-pallet gate, the floor layout must accommodate its wide width footprint:
Requirement Parameter Specification Imperial / Metric
Machine Weight 16,000 lbs (7,258 kg)
Footprint Dimensions 145.5" Width x 134" Depth x 98.8" Max Height
Air Consumption 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Coolant Reservoir Capacity 55 gallons (208 L)

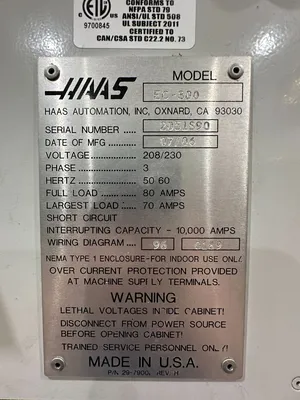

Electrical Power Needed 208/230 VAC, 3-Phase
Haas EC-300 Horizontal Machining Center (2006)
Imperial
| size | 20" x 18" x 14" |
| X | 20" |
| Y | 18" |
| Z | 14" |
| Power | 20 hp |
| RPM | 8,000 RPM |
| # ATC | 24 |
| Taper | 40 |
| Pallet-W | 11.8" |
| Pallet-L | 11.8" |
Haas EC-300 Horizontal Machining Center (2006)
Axis Travels & Work Envelope
The EC-300's travel parameters are optimized for efficient, rapid movements over a compact machining area:
• X-Axis Travel: 20.0 in (508 mm)
• Y-Axis Travel: 18.0 in (457 mm)
• Z-Axis Travel: 14.0 in (356 mm)
• Spindle Center to Pallet Surface: 2.0" to 20.0" (51 to 508 mm)
• Spindle Nose to Pallet Centerline: 4.0" to 18.0" (102 to 457 mm)
Twin-Pallet System & B-Axis
The automated rotary pallet changer handles tight high-volume turnaround setups:
• Pallet Dimensions: 11.8" x 11.8" (300 mm x 300 mm)
• Number of Pallets: 2
• Max Weight on Pallet: 550 lbs (250 kg) per pallet
• Pallet Change Time: ~4.7 seconds
• Pallet Indexing (B-Axis): Standard configuration provides 1-degree index resolution. A full continuous 4th axis (0.001-degree) was available as a factory upgrade option.
Spindle & Tool Changer Specs
The 40-taper platform can be found configured with different speed packages depending on the exact manufacturing year (primarily built between 2004 and 2014):
• Spindle Taper: CAT 40 / CT 40
• Spindle Speed Options:
• Standard inline-drive: 8,000 RPM
• Optional high-speed inline direct-drive: 12,000 RPM
• Spindle Power: 20 HP (14.9 kW) vector drive system
• Spindle Torque: 75 ft-lb @ 1,400 RPM
• Automatic Tool Changer (ATC): Standard 24-station side-mount tool changer (upgradable to 40 stations).
Feedrates & Motion Performance
High-efficiency linear paths ensure minimized air-cut times during operation:
• Max Cutting Feedrate: 500 ipm (12.7 m/min)
• Rapid Traverse Rates: 1,000 ipm (25.4 m/min) on X, Y, and Z axes
• Axis Thrust (Max): 2,550 lbs (11,343 N)
Physical Machine Footprint & Facility Requirements
Because of the clearance needed for the rotating twin-pallet gate, the floor layout must accommodate its wide width footprint:
Requirement Parameter Specification Imperial / Metric
Machine Weight 16,000 lbs (7,258 kg)
Footprint Dimensions 145.5" Width x 134" Depth x 98.8" Max Height
Air Consumption 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Coolant Reservoir Capacity 55 gallons (208 L)
Electrical Power Needed 208/230 VAC, 3-Phase
