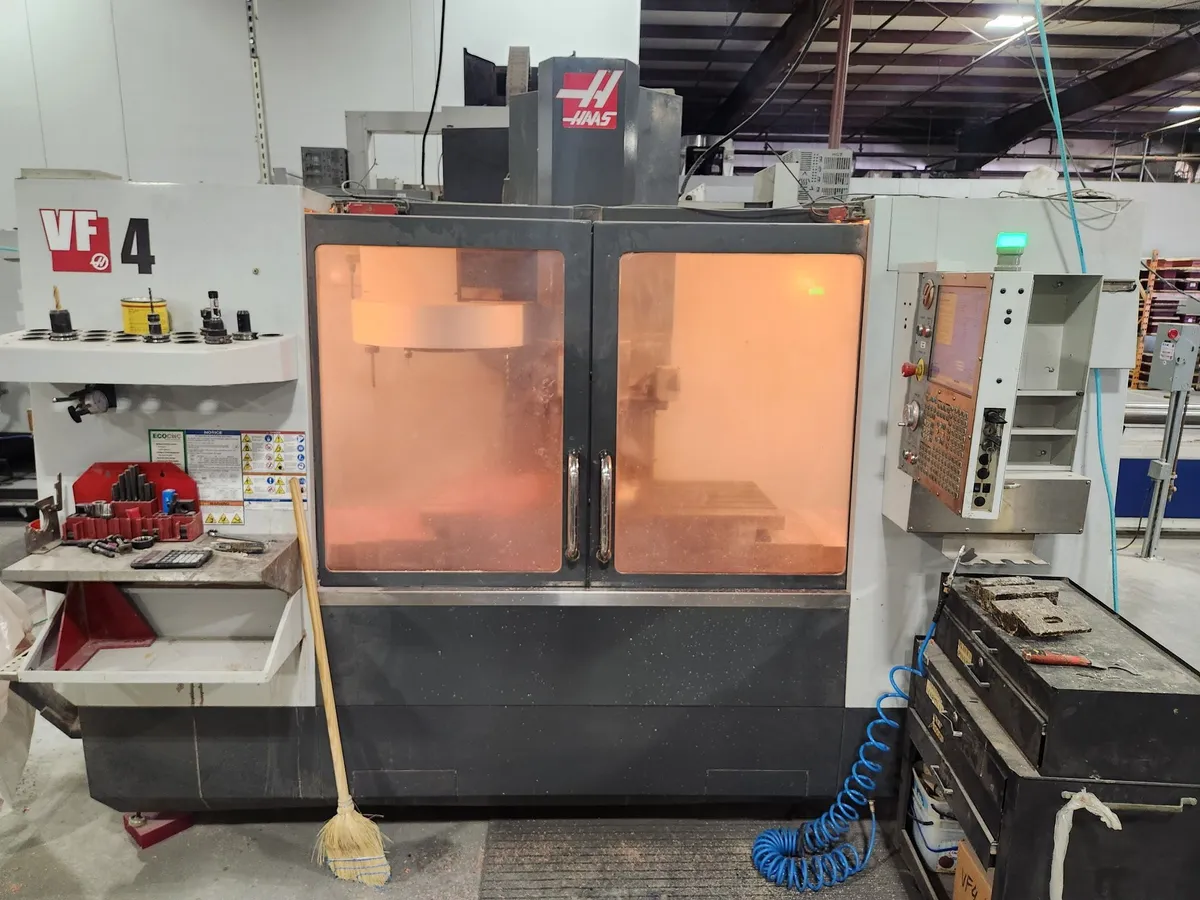

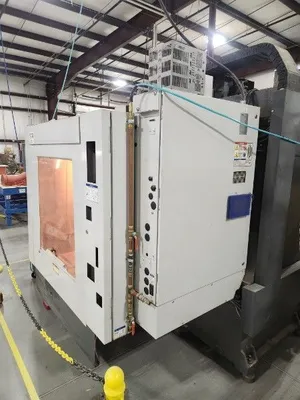

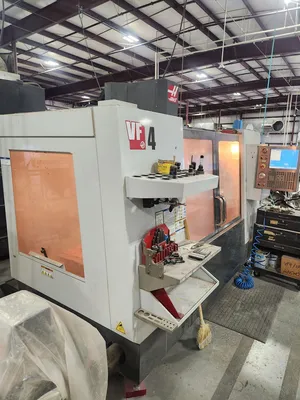

Haas VF-4 Vertical Machining Center (2011)

Haas VF-4 Vertical Machining Center (2011)
• Travels:
• X-Axis: 50.0 in (1270 mm)
• Y-Axis: 20.0 in (508 mm)
• Z-Axis: 25.0 in (635 mm)
• Spindle Nose to Table Top: 4.2" to 29.2"

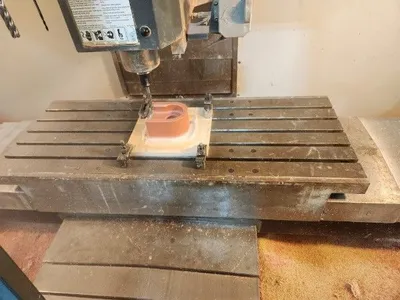

• Table Details:
• Dimensions: 52" x 18"
• Max Table Load: 3,500 lbs (1588 kg)

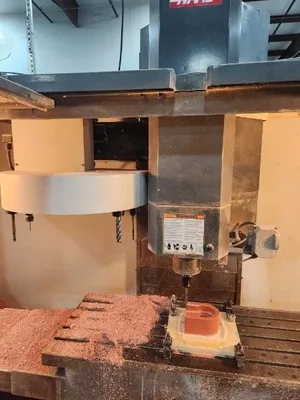

• Spindle Configurations:
• Taper: CT 40 or BT 40
• Standard Speed: 8,100 RPM (Inline Direct-Drive)
• High-Torque/Older Options: Available 2-speed gearboxes with 7,500 or 10,000 RPM spindles
• Drive Power: 20 HP to 30 HP vector drive system
• Tool Changer (ATC):
• Standard: 20-station carousel tool changer
• High Capacity: 24 to 30-station side-mount tool changer (ATC)
• Feedrates & Motion:
• Max Cutting Rate: 650 ipm (16.5 m/min)
• Rapid Traverse: 710 ipm (18.0 m/min) on X, Y, and Z axes
