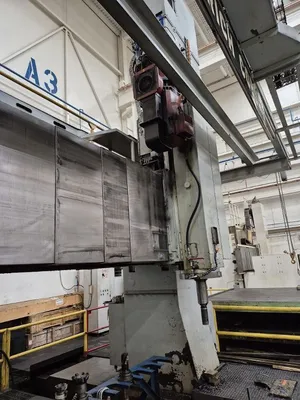

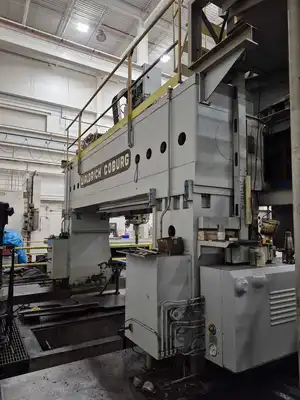

Waldrich Coburg 669X189 Gantry Mill
Have one to sell?
ConditionUsed
1 available
Waldrich Coburg 669X189 Gantry Mill
Siemens 840D CNC Control (Retrofit 2013):

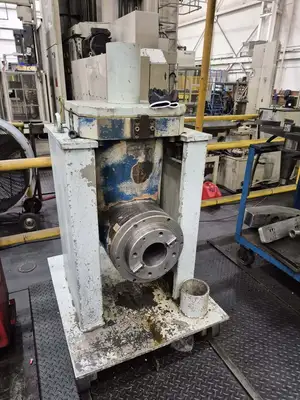

*(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing:

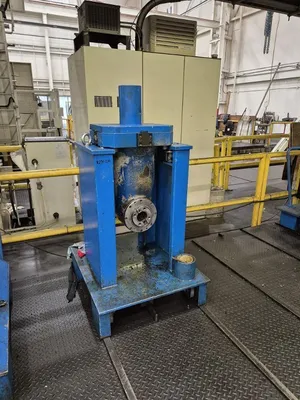

(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing:
Heidenhain Glass Scales on All Axis:
Rigid Tapping:
New Control, All New Wiring, New Electrical Cabinets:
New Motors, New Main Drive & Motor:
Heidenhain Glass Scales on All Axis:
CAPACITY:
Gantry Travel, X-Axis: 669"
Head Travel, Y-Axis,: 189"

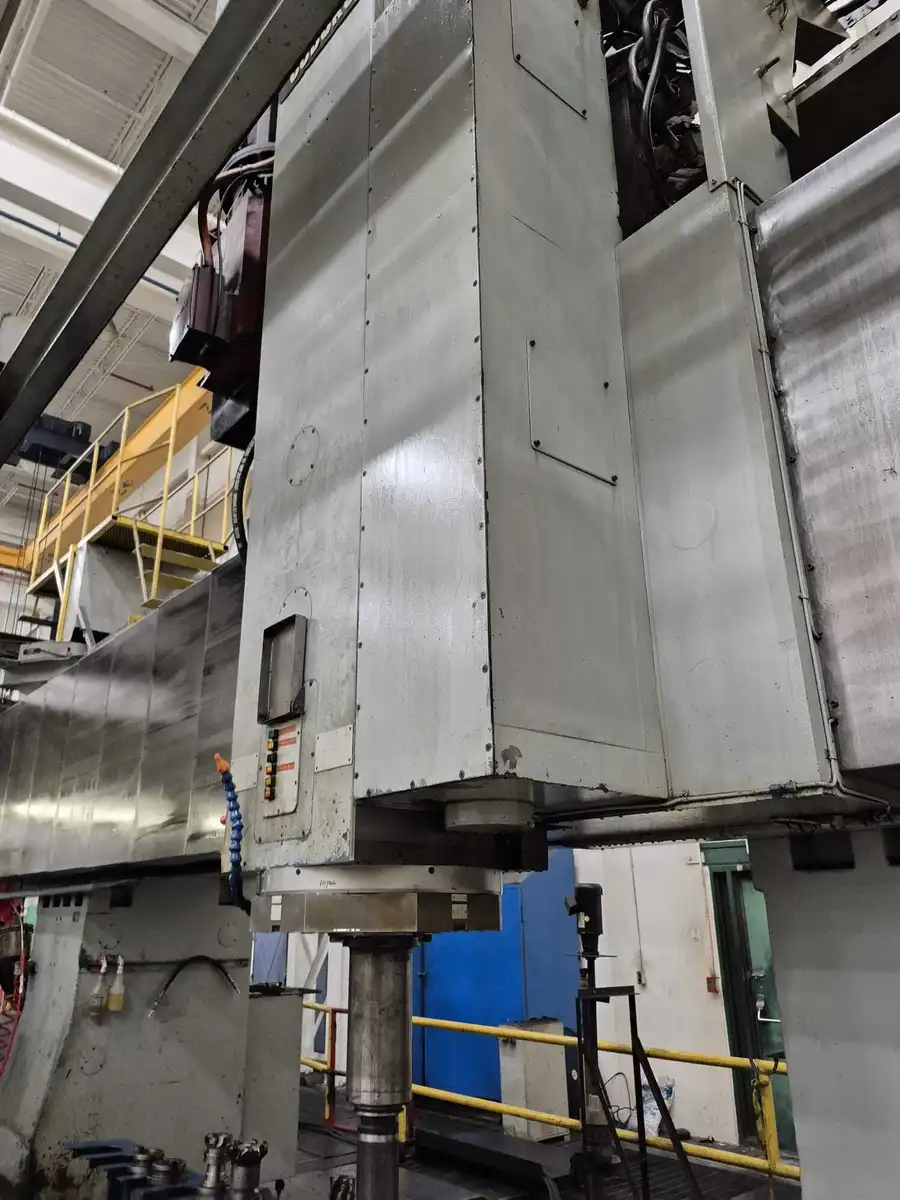

Ram Stroke, Z-Axis: 50.05"
Distance Between Columns: 149.6"
Distance Table To Ram Face: 90.55"

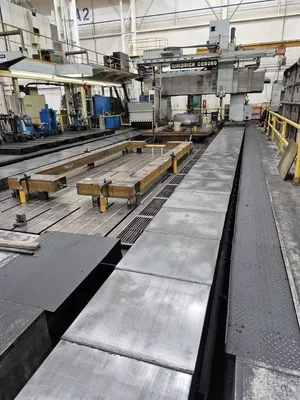

Table Size: 118" x 630" FLOOR PLATES ARE IN SECTIONS 1,500 m/m x 4,000 m/m (8) pc's complete with levelling gear.
Spindle Taper: #50 & #60 ISO
Spindle Speeds, 2-Ranges: .04 - 3000 RPM
Spindle Motor, Siemens: 80 HP
Siemens 840D CNC Control (Retrofit 2013)
(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing:
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing:
Heidenhain Glass Scales on All Axis:
Rigid Tapping:
Trolley with Tool Holders:
Steel Sliding Way Covers on X & Y Axis:
(2) Chip Conveyors:
NOTE:
New Control, All New Wiring, New Electrical Cabinets:
All New Siemens AC Motors and Drives:
X. AXIS IS HYDROSTATIC AND DRIVE WITH HYDROSTA WARM GEAR
X. AXIS RAPID MOTION 12,000 m/m min.
All othe axis 8,000 m/m min.
Feed's in All Axis 0 to 6,000 m/m min.
Total weight 90 TON METRIC
Waldrich Coburg 669X189 Gantry Mill
Siemens 840D CNC Control (Retrofit 2013):
*(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing:
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing:
Heidenhain Glass Scales on All Axis:
Rigid Tapping:
New Control, All New Wiring, New Electrical Cabinets:
New Motors, New Main Drive & Motor:
Heidenhain Glass Scales on All Axis:
CAPACITY:
Gantry Travel, X-Axis: 669"
Head Travel, Y-Axis,: 189"
Ram Stroke, Z-Axis: 50.05"
Distance Between Columns: 149.6"
Distance Table To Ram Face: 90.55"
Table Size: 118" x 630" FLOOR PLATES ARE IN SECTIONS 1,500 m/m x 4,000 m/m (8) pc's complete with levelling gear.
Spindle Taper: #50 & #60 ISO
Spindle Speeds, 2-Ranges: .04 - 3000 RPM
Spindle Motor, Siemens: 80 HP
Siemens 840D CNC Control (Retrofit 2013)
(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing:
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing:
Heidenhain Glass Scales on All Axis:
Rigid Tapping:
Trolley with Tool Holders:
Steel Sliding Way Covers on X & Y Axis:
(2) Chip Conveyors:
NOTE:
New Control, All New Wiring, New Electrical Cabinets:
All New Siemens AC Motors and Drives:
X. AXIS IS HYDROSTATIC AND DRIVE WITH HYDROSTA WARM GEAR
X. AXIS RAPID MOTION 12,000 m/m min.
All othe axis 8,000 m/m min.
Feed's in All Axis 0 to 6,000 m/m min.
Total weight 90 TON METRIC
