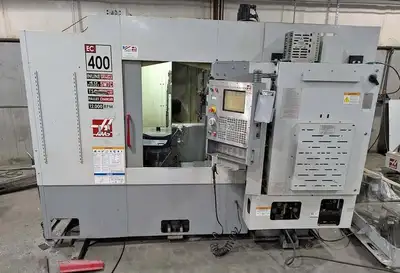

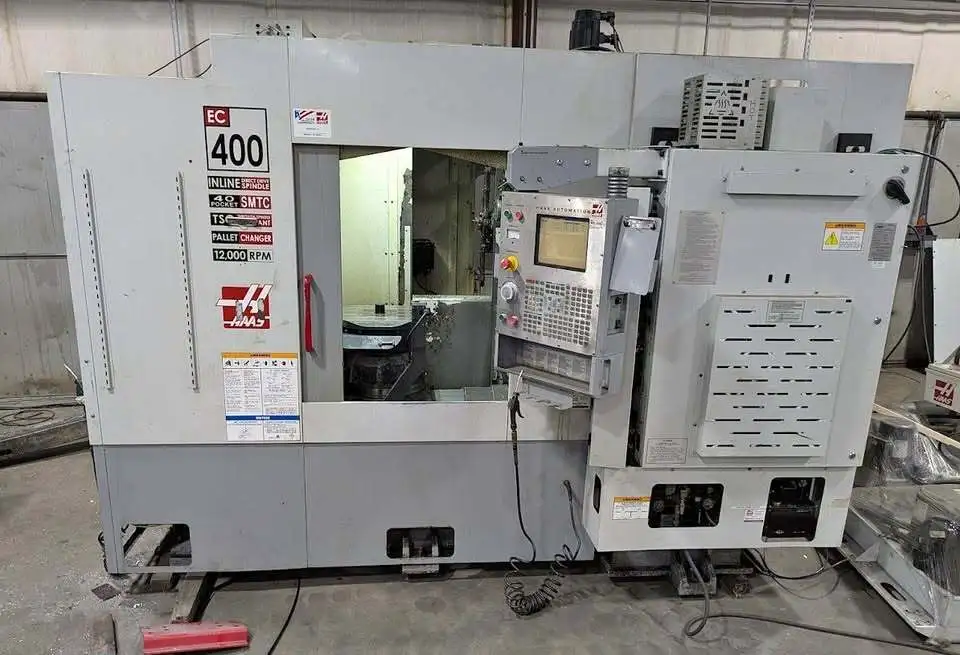

Haas EC-400-4AX 4 Axis Horizontal Machining Center (2005)

Haas EC-400-4AX 4 Axis Horizontal Machining Center (2005)

General & Capacity Specifications

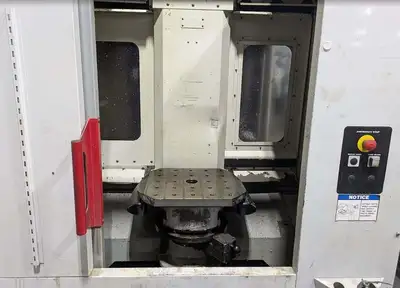

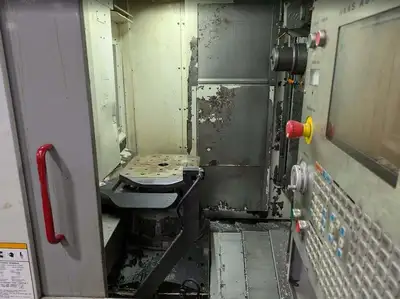

• Pallet Size: 15.75" x 15.75" (400 mm)
• Number of Pallets: 2 (Dual-pallet changer system)
• Maximum Pallet Load: ~880 lbs to 1,000 lbs (depending on configuration)
• B-Axis (Full 4th Axis): 0.001-degree incremental/continuous programmable indexing

Axis Travels

• X-Axis Travel: 20" (standard 2005 configuration)
• Y-Axis Travel: 20"
• Z-Axis Travel: 20"
• Rapid Traverse Rate (X/Y/Z): 1,000 IPM

Spindle

• Spindle Taper: CAT 40
• Spindle Speed: Typically 12,000 RPM (common 2005 spec upgrade; baseline models varied)
• Spindle Power: 20 HP to 30 HP (dependent on package)

Tool Changer & System Features

• Tool Changer Capacity: 40-station Automatic Tool Changer (ATC)
• Max Tool Weight: 12 lbs

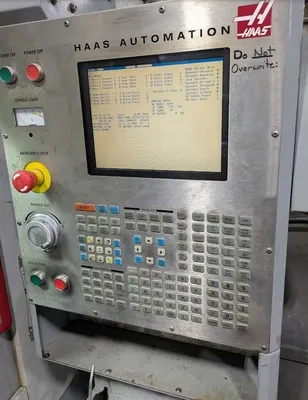

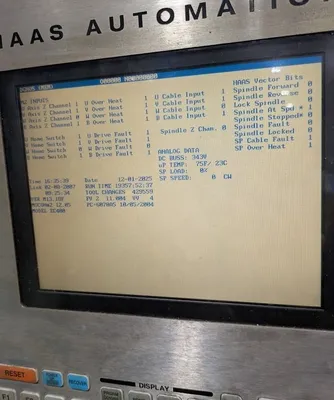

• Control: Haas CNC Control
• Common Equipment / Options: Full 4th axis rotary, rigid tapping, chip conveyor / auger, through-spindle coolant (TSC), and probe systems (such as Renishaw intuitive probing).
• Machine Weight: Approx. 20,000 lbs
