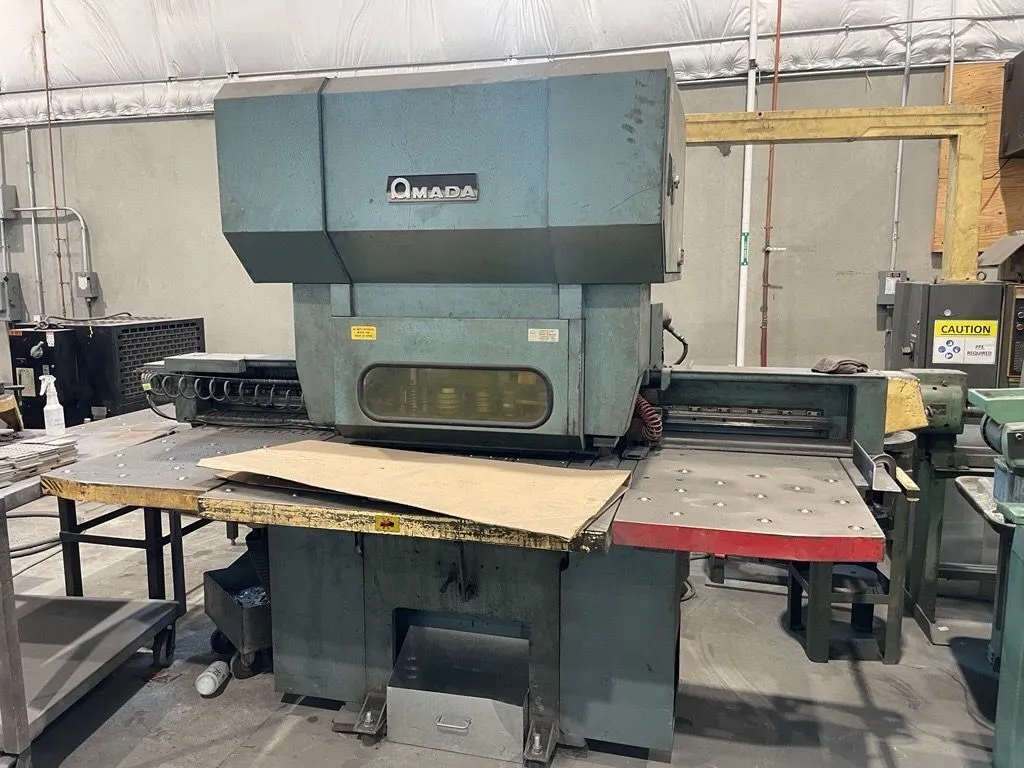

Amada Octo 344 CNC Turret Punch

Amada Octo 344 CNC Turret Punch

Core Performance & Capacity

• Press Capacity: 33 Tons (approx. 30 Metric Tons)
• Maximum Sheet Size (Without Repositioning): 29.5" × 39.37" (750 mm × 1000 mm)
• Maximum Sheet Size (With Repositioning): 29.9" × 78.74"
• Maximum Material Thickness: 0.25" (1/4" / 6.35 mm mild steel)
• Maximum Hole Diameter: 3.5" (88.9 mm)

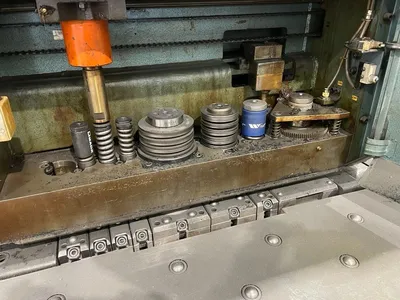

Turret & Speed

• Number of Stations: 8 or 9 Stations (Thick Style config, depending on exact year)
• Auto-Index Capabilities: Equipped with 1 Auto-Index station
• Hit Rate (1" Centers): 150 Hits Per Minute (HPM)
• Stroke Speed: 300 Strokes Per Minute (SPM)
• Axis Feed Speed: 1,575 Inches Per Minute (IPM)

System & Control Architecture

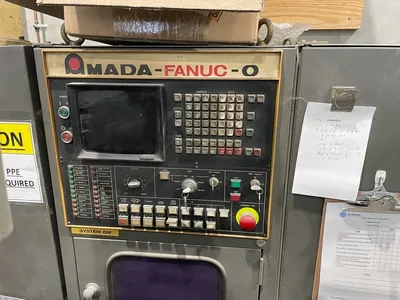

• CNC Control Model: Fanuc 6M System
• Drive System: DC Servo Motors
• Smallest Programmable Increment: 0.001"
• Standard Features: Pneumatic hydraulic clutch and brake, automatic sheet repositioning, stripping sensors.

Electrical & Physical Footprint

• Power Requirements: 230V / 60Hz / 3-Phase
• Machine Weight: Approx. 20,000 to 21,600 lbs (Approx. 9,800 kg)
• Approximate Floor Space Dimensions: 10' W x 11' L x 7.5' H
