Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2012)
Have one to sell?
ConditionUsed
1 available
Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2012)
Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2012)
Core Work Envelope & Capacities
• Maximum Tool Diameter: 25 mm (1").
• Maximum Tool Length: 250 mm (9.8").
• Maximum Tool Weight: 20 kg (44 lbs).
• Maximum Grinding Wheel Diameter: 203 mm (8").
Axis Travel
• X-axis Travel: 400 mm (15.7").
• Y-axis Travel: 270 mm (10.6").
• Z-axis Travel: 270 mm (10.6").
Spindle Specifications
• Spindle Type: Permanent Magnet Spindle (bi-symmetrical gantry design).
• Peak Power: 38 kW (51 HP).
• Continuous Power (S1): 20 kW (27 HP).
• Maximum Spindle Speed: 10,000 RPM.
• Spindle Drive: Position-controlled axis (Q-axis) for repeatable indexing.
Wheel Changer & Automation
• Wheel Pack Storage: 6-station automatic wheel changer (HSK 50 orientation).
• Maximum Wheel Configuration: Up to 3 x 203 mm (8") wheels or 6 x 152 mm (6") wheels per pack.
• Coolant Delivery: Automatically interchanges matching coolant manifolds during wheel changes.
• Automation Upgrades: Compatible with FastLoad-MX Compact Loader or RoboMate Robot Loader systems.
Drive System & Infrastructure
• Linear Drives: Cylindrical, tubular ANCA LinX Linear Motors on X and Y axes.
• Feedback System: High-accuracy linear scales included as standard.
• Base Construction: ANCAcrete polymer concrete base for high thermal stability and vibration dampening.
• Control System: ANCA AMC5 G2 architecture running on Windows 10 platforms
Extenal Loader
6-Station Wheel Changer System
Pop Up Steady Rest
Schaublin B32/45 high-Precision Swiss Collet and Work-Holding System
ANCA ToolRoom RN34.1
Mist Buster Mist Collector

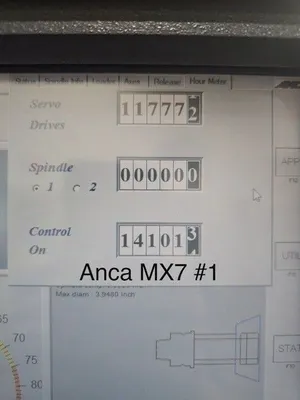

New computer was installed which erased the hours
Spindle and Flood Coolant Pumps
Currently Set Up With The Ebbco Evolution Coolant Filtration ( Available at Additional Cost )
Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2012)
Imperial
| # Axis | 5 |
| Swing | 7.87" |
| Centers | 12" |
| Grinding Wheel Dia. | 1" |
| Power | 51 hp |
| Max RPM | 10,000 RPM |
Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2012)
Core Work Envelope & Capacities
• Maximum Tool Diameter: 25 mm (1").
• Maximum Tool Length: 250 mm (9.8").
• Maximum Tool Weight: 20 kg (44 lbs).
• Maximum Grinding Wheel Diameter: 203 mm (8").
Axis Travel
• X-axis Travel: 400 mm (15.7").
• Y-axis Travel: 270 mm (10.6").
• Z-axis Travel: 270 mm (10.6").
Spindle Specifications
• Spindle Type: Permanent Magnet Spindle (bi-symmetrical gantry design).
• Peak Power: 38 kW (51 HP).
• Continuous Power (S1): 20 kW (27 HP).
• Maximum Spindle Speed: 10,000 RPM.
• Spindle Drive: Position-controlled axis (Q-axis) for repeatable indexing.
Wheel Changer & Automation
• Wheel Pack Storage: 6-station automatic wheel changer (HSK 50 orientation).
• Maximum Wheel Configuration: Up to 3 x 203 mm (8") wheels or 6 x 152 mm (6") wheels per pack.
• Coolant Delivery: Automatically interchanges matching coolant manifolds during wheel changes.
• Automation Upgrades: Compatible with FastLoad-MX Compact Loader or RoboMate Robot Loader systems.
Drive System & Infrastructure
• Linear Drives: Cylindrical, tubular ANCA LinX Linear Motors on X and Y axes.
• Feedback System: High-accuracy linear scales included as standard.
• Base Construction: ANCAcrete polymer concrete base for high thermal stability and vibration dampening.
• Control System: ANCA AMC5 G2 architecture running on Windows 10 platforms
Extenal Loader
6-Station Wheel Changer System
Pop Up Steady Rest
Schaublin B32/45 high-Precision Swiss Collet and Work-Holding System
ANCA ToolRoom RN34.1
Mist Buster Mist Collector
New computer was installed which erased the hours
Spindle and Flood Coolant Pumps
Currently Set Up With The Ebbco Evolution Coolant Filtration ( Available at Additional Cost )
