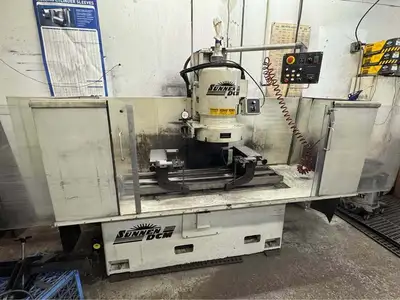

Sunnen DCM HB-3810 heavy-duty head and block resurfacing machine

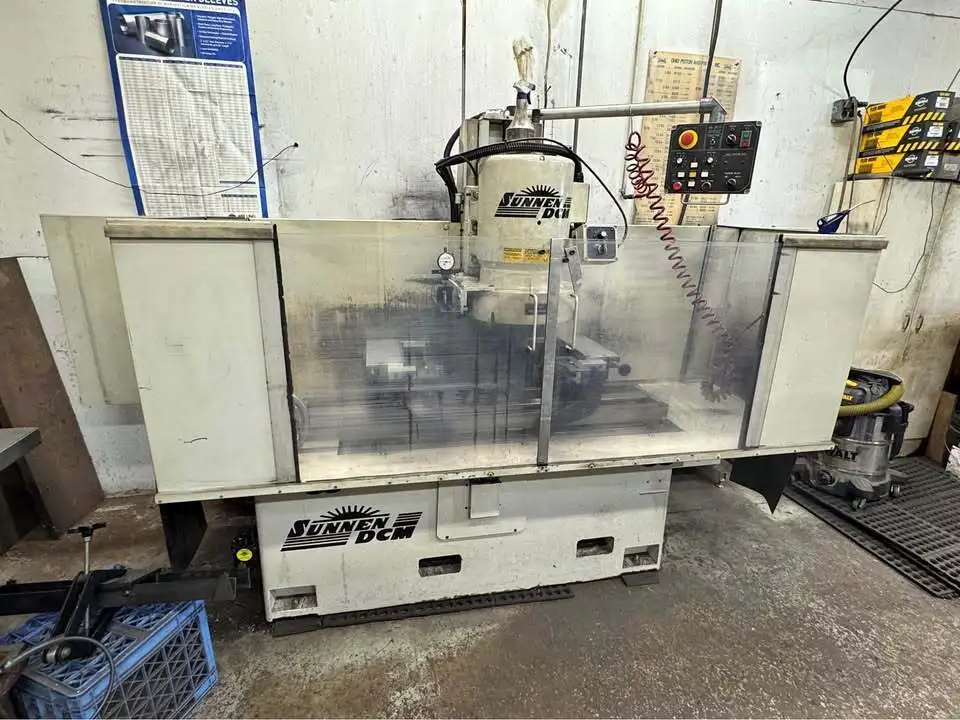

Sunnen DCM HB-3810 Heavy-duty Head and Block Resurfacing Machine

• Spindle Motor: 7.5 hp, 3-phase, 230V
• Standard Spindle Speed: 1200 RPM (optional variable speed configuration available from 500–1800 RPM)
• Maximum Workpiece Length: 38 inches
• Maximum Workpiece Width: 14 inches
• Table Travel: 46.5 inches
• Variable Table Speed: 0 to 100 or 150 Inches Per Minute (IPM)
• Table-to-Cutter Clearance: 25 inches maximum
• Cutter Head: 14-inch diameter milling head holding two CBN (Cubic Boron Nitride) or PCD (Polycrystalline Diamond) inserts
• X-Axis Drive: Precision ball screw drive for controlled, steady table movement
• Machine Weight: 3,300 lbs
• Operational Footprint: 140″ L x 42″
