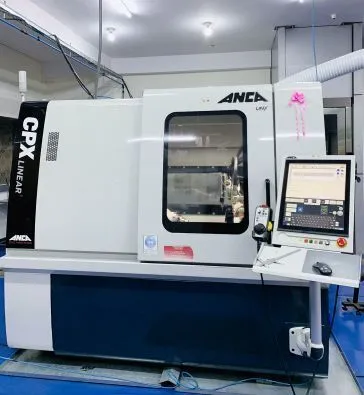

Anca CPX Linear CNC Tool & Cutter Grinder (2019)

Anca CPX Linear CNC Tool & Cutter Grinder (2019)

• Drive System: Driven by LinX linear motors across its linear axes to ensure maximum thermal stability and smooth travel.
• X-Axis Travel: 535 mm (21")
• Y-Axis Travel: 125 mm (4.9")
• V-Axis Travel: 125 mm (4.9")
• A-Axis (Workhead): Continuous 360° rotation at a maximum speed of 3,000 rpm, built with an ISO50 taper.

Spindle Specifications

• Roughing Spindle: Powered by an induction motor providing 43 kW (58 HP) peak power at 5,500 rpm, a continuous S1 rating of 13.8 kW (18.5 HP), maximum torque of 24 Nm, a speed range of 0–9,000 rpm, and accommodates a maximum wheel diameter of 250 mm (10").
• Finishing Spindle: Powered by an induction motor providing 9.7 kW (13 HP) peak power at 7,000 rpm, a continuous S1 rating of 3.8 kW (5 HP), maximum torque of 6 Nm, a speed range of 0–13,000 rpm, and accommodates a maximum wheel diameter of 150 mm (6").

Capacity & Work Envelope

• Blank Diameters (Manual): Supports tool blank diameters from 1 mm to 25.4 mm (1/64" to 1"), with a maximum structural shank holding capacity of 32 mm (1-1/4").
• Grinding Lengths: Grinding length ranges from 90 mm to 360 mm (14.1"), with a maximum total tool length capacity of 380 mm.
• Automated Capacity: When configured with the integrated AR300 loader, it automates blanks up to Ø20 mm (3/4") x 200 mm (8") long.

System Control & Dimensions

• CNC Hardware: Equipped with an ANCA AMC5 (or AMC5 G2) CNC control architecture, utilizing an Intel processor, high-speed solid-state drive (SSD), EtherCAT connectivity, and built-in uninterruptible power supply (UPS).
• Software Environment: Runs on a Windows 10 platform running ANCA-designed conversational BlankX software.
• Physical Footprint: Measures 2,477 mm W x 1,659 mm D x 2,052 mm H (97.5" x 65.3" x 80.8"), with an overall machine weight of approximately 4,500 kg (9,920 lbs).
