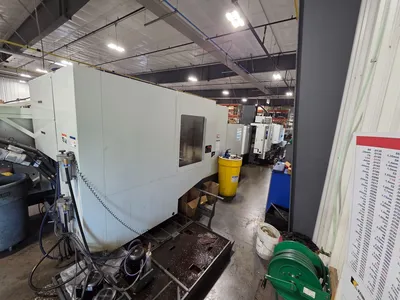

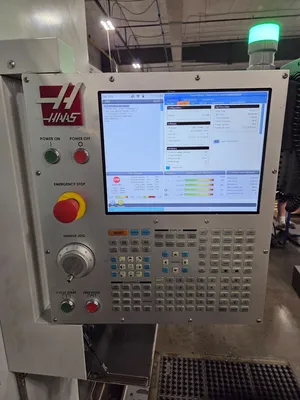

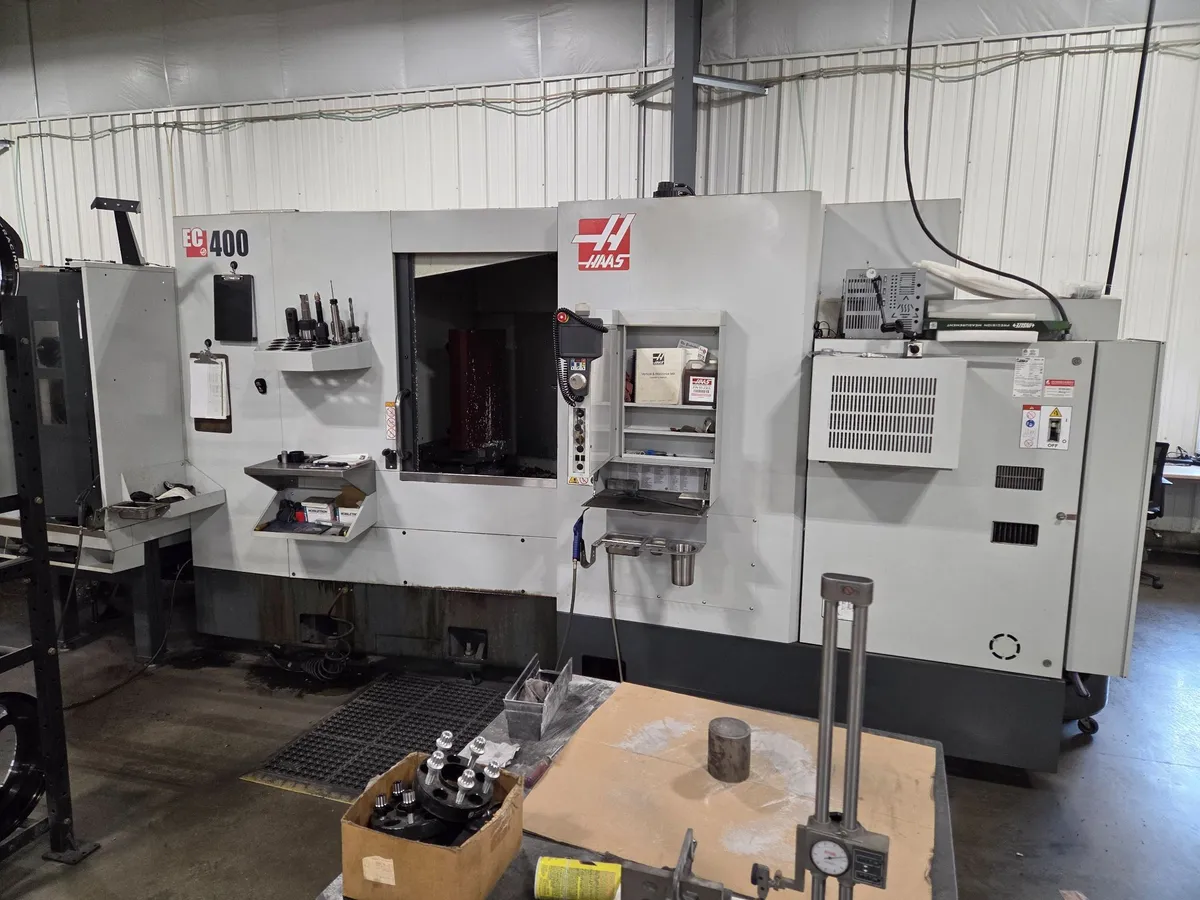

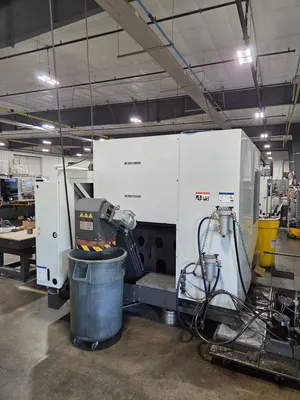

Haas EC-400 4 Axis 6 Pallet Horizontal Machining Center (2022)

Haas EC-400 4 Axis 6 Pallet Horizontal Machining Center (2022)

Axis Travels & Work Envelope

• X-Axis Travel: 22.0 in (559 mm)
• Y-Axis Travel: 25.0 in (635 mm)
• Z-Axis Travel: 22.0 in (559 mm)
• Max Part Swing Diameter: 22.0 in (559 mm)
• Max Part Height: 35.0 in (889 mm)

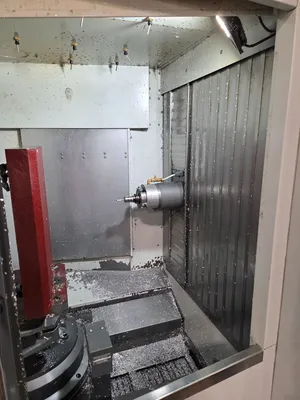

Spindle Specifications

• Spindle Taper: 40
• Spindle Speeds: 15,000 rpm
• Spindle Power: 30.0 hp (22.4 kW) vector drive

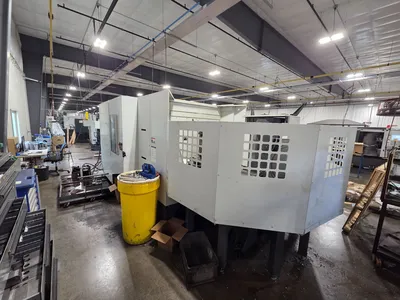

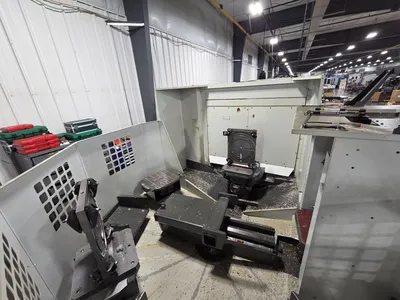

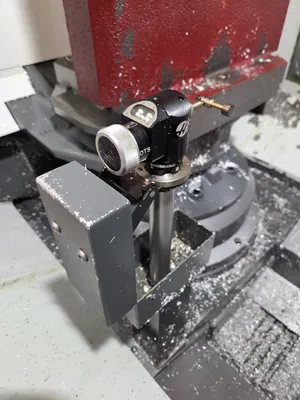

Pallet & Rotary System

• Pallet Size: 15.748 in x 15.748 in (400 mm x 400 mm)
• Maximum Weight on Pallet: 880 lb (400 kg)
• B-Axis Indexing: Full 4th-axis rotary indexer
• Continuous Rotational Torque: 424 ft-lb (575 Nm)
• 90° Rotation Time: 3 seconds

Feedrates & Tool Changer

• Rapid Traverse Rate (X, Y, Z): 1,400 in/min (35.6 m/min)
• Maximum Feedrate: 833 in/min (21.2 m/min)
• Standard Tool Changer Capacity: 50+1 side-mount ATC

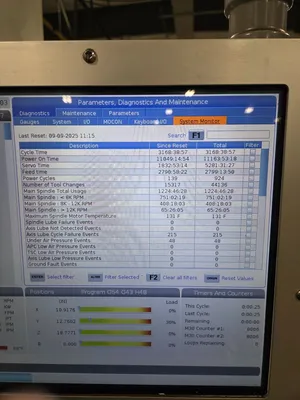

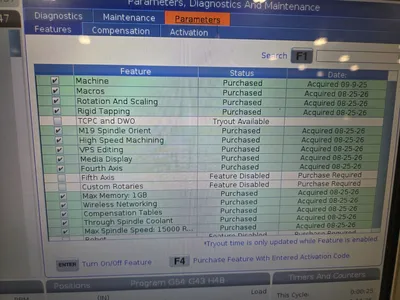

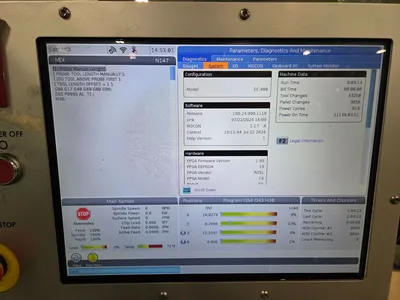

Cycle Time 3168:38:57
Power On Time 11163:53:18
Servo Time 1832:53:14 5281:31:27
Feed time 2790:58:22 2799:13:50
Power Cycles 919
Number of Tool Changes 44136
Main Spindle Total Usage 1224:46:28 1224:46:28
Main Spindle : < 8K RPM 751:02:19 751:02:19
