Pines CNC075 Tube Bender (2007)
Have one to sell?
ConditionUsed
1 available

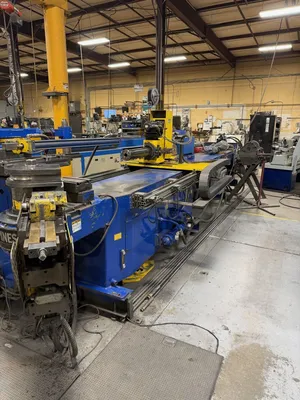

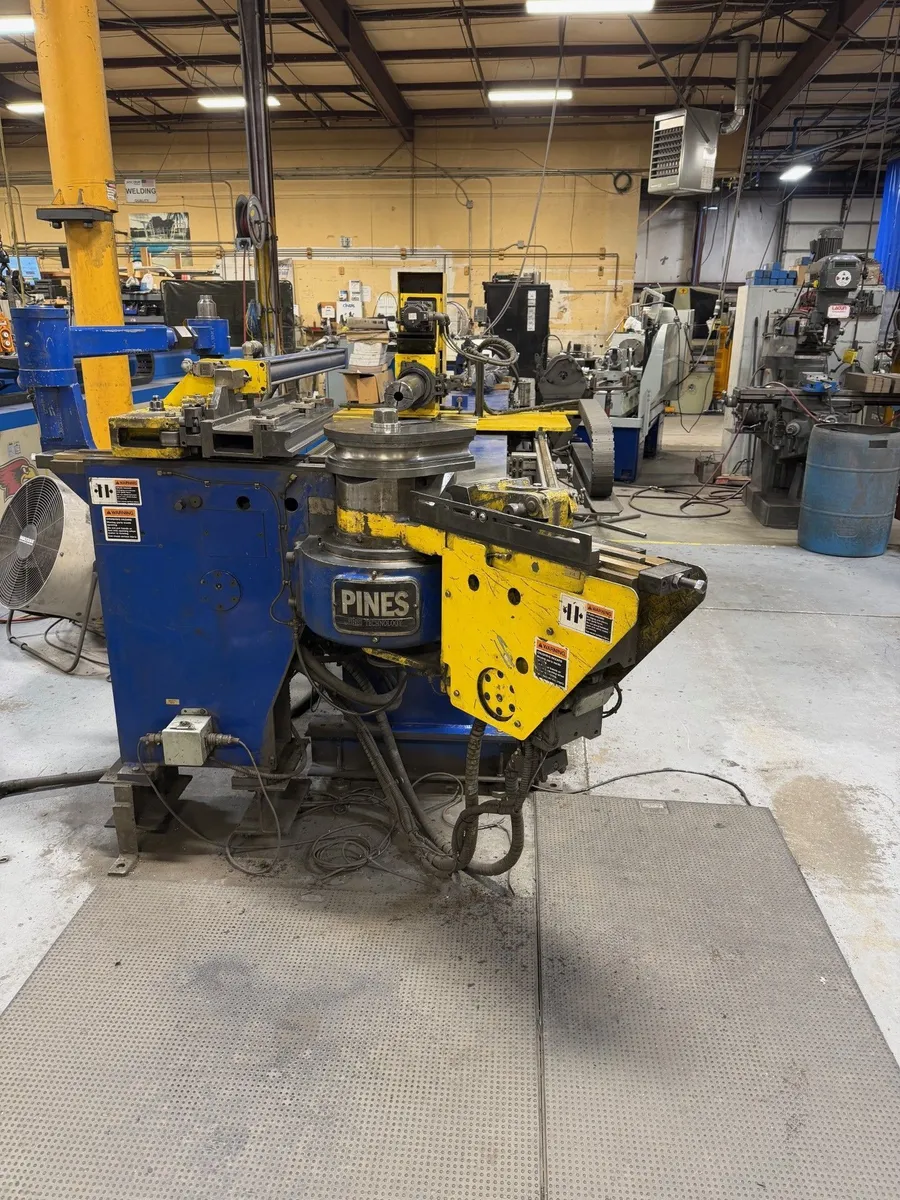

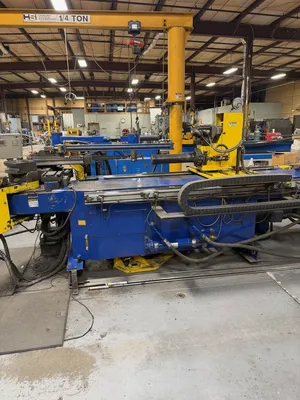

Pines CNC075 Tube Bender (2007)
Pines CNC075 Tube Bender (2007)
• Mild Steel Tubing: Up to 3″ OD × .109″ wall thickness (yield strength to 40,000 psi)
• Non-Ferrous Tubing: Up to 3″ OD × .187″–.188″ wall thickness (yield strength to 25,000 psi)
• Stainless Steel Tubing: Up to 3″ OD × .065″ wall thickness (yield strength to 60,000 psi)
• Steel Pipe: Up to 2″ IPS Schedule 80 (2.375″ OD × .218″ WT)
• Square Tubing (Mild Steel): Up to 2″ × .125″
• Minimum Tube OD: 1/4″ to 3/8″ (depending on configuration)
Bending & Axis Specifications
• Maximum Centerline Radius (CLR): Standard 12″
• Minimum Radius-to-Diameter Ratio: 1:1
• Maximum Degree of Bend: 180° + springback (up to 190°–195° depending on build)
• Centerline Height: 2.0″
• Bend Arm Speed / B-Axis Rotation Speed: 14 RPM to 45 RPM (B-axis travel: 360°)
• Y-Axis Travel Speed: 2,400 IPM (6′ standard carriage travel)
• Bend Arm Repeatability: ±0.1°
• Carriage Repeatability: ±.005″
Machine & Power Details
• Motor Horsepower: 20 HP
• Electrical Requirements: 480V, 3-phase, 60 Hz
• Hydraulic Oil Reservoir: 55-gallon capacity (sealed system)
• Working Height: ~40″

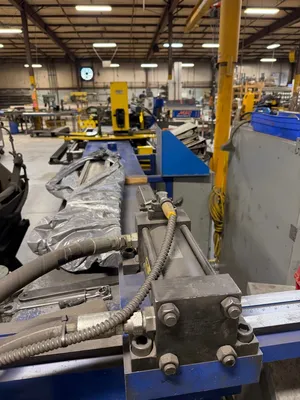

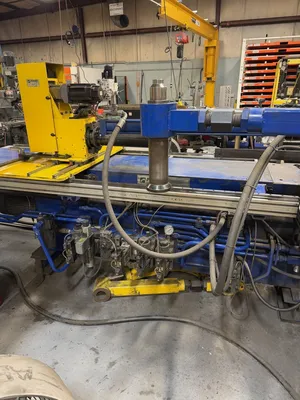

• Standard Features: Hydraulic pressure die assist, hydraulic mandrel extractor, drop-away clamp die holder, and a swing-away wiper die holder.

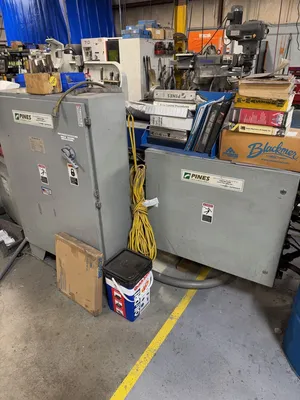

Overbuilt bend head with crossbar tie, drop away clamp, hitch feed collet system, and swing out wiper as well as some other upgrade options. In 2013 the unit was refitted with new PLC driven controls and added oil cooling system. System now running BendPro G2V2 with support. Omni X brand tooling in the following configurations:

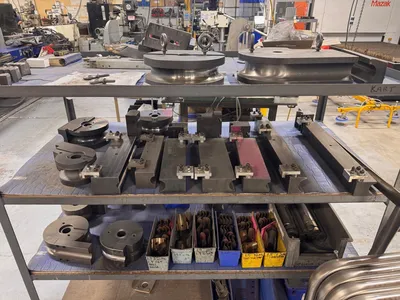

2.375" OD 6" CLR
1.9" OD 11",6",4",3" CLR
1.5" OD 6",4",3" CLR
1.25" OD 4" CLR
1" OD 3.875" CLR
1.66"OD 3" CLR
Pines CNC075 Tube Bender (2007)
Imperial
| Capacity | 3" |
Pines CNC075 Tube Bender (2007)
• Mild Steel Tubing: Up to 3″ OD × .109″ wall thickness (yield strength to 40,000 psi)
• Non-Ferrous Tubing: Up to 3″ OD × .187″–.188″ wall thickness (yield strength to 25,000 psi)
• Stainless Steel Tubing: Up to 3″ OD × .065″ wall thickness (yield strength to 60,000 psi)
• Steel Pipe: Up to 2″ IPS Schedule 80 (2.375″ OD × .218″ WT)
• Square Tubing (Mild Steel): Up to 2″ × .125″
• Minimum Tube OD: 1/4″ to 3/8″ (depending on configuration)
Bending & Axis Specifications
• Maximum Centerline Radius (CLR): Standard 12″
• Minimum Radius-to-Diameter Ratio: 1:1
• Maximum Degree of Bend: 180° + springback (up to 190°–195° depending on build)
• Centerline Height: 2.0″
• Bend Arm Speed / B-Axis Rotation Speed: 14 RPM to 45 RPM (B-axis travel: 360°)
• Y-Axis Travel Speed: 2,400 IPM (6′ standard carriage travel)
• Bend Arm Repeatability: ±0.1°
• Carriage Repeatability: ±.005″
Machine & Power Details
• Motor Horsepower: 20 HP
• Electrical Requirements: 480V, 3-phase, 60 Hz
• Hydraulic Oil Reservoir: 55-gallon capacity (sealed system)
• Working Height: ~40″
• Standard Features: Hydraulic pressure die assist, hydraulic mandrel extractor, drop-away clamp die holder, and a swing-away wiper die holder.
Overbuilt bend head with crossbar tie, drop away clamp, hitch feed collet system, and swing out wiper as well as some other upgrade options. In 2013 the unit was refitted with new PLC driven controls and added oil cooling system. System now running BendPro G2V2 with support. Omni X brand tooling in the following configurations:
2.375" OD 6" CLR
1.9" OD 11",6",4",3" CLR
1.5" OD 6",4",3" CLR
1.25" OD 4" CLR
1" OD 3.875" CLR
1.66"OD 3" CLR
