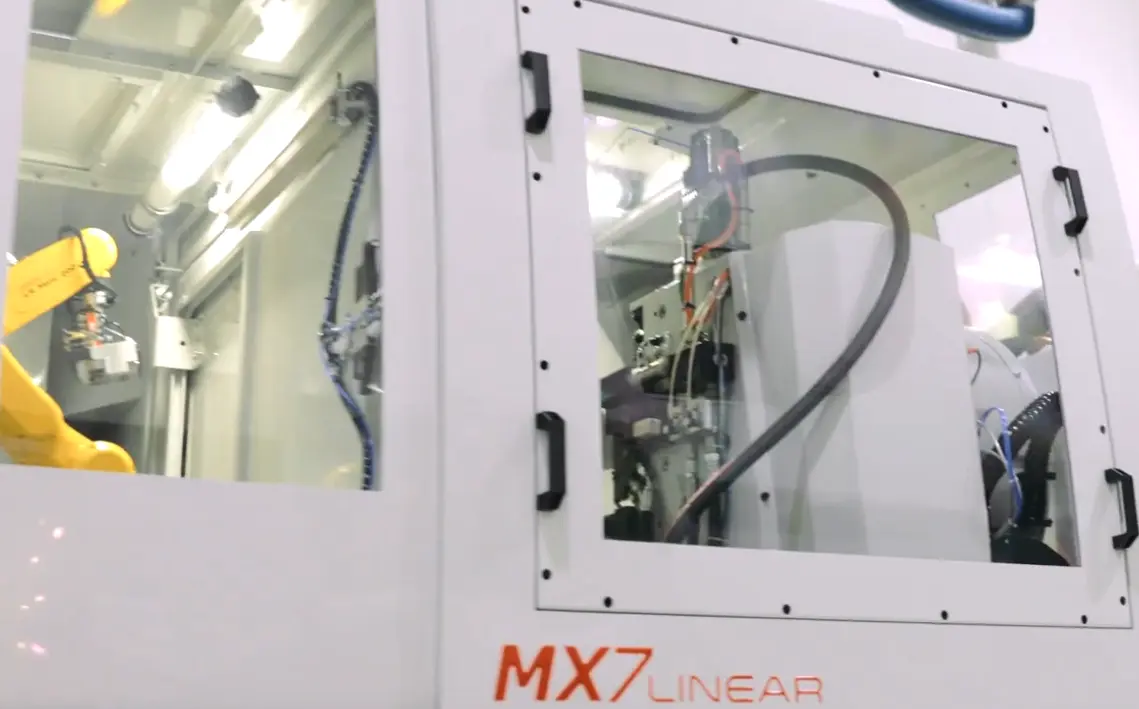

Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2018)

Anca MX7 Linear 5 Axis CNC Tool & Cutter Grinder (2018)

Core Work Envelope & Capacities

• Maximum Tool Diameter: 25 mm (1").
• Maximum Tool Length: 250 mm (9.8").
• Maximum Tool Weight: 20 kg (44 lbs).
• Maximum Grinding Wheel Diameter: 203 mm (8").

Axis Travel

• X-axis Travel: 400 mm (15.7").
• Y-axis Travel: 270 mm (10.6").
• Z-axis Travel: 270 mm (10.6").

Spindle Specifications

• Spindle Type: Permanent Magnet Spindle (bi-symmetrical gantry design).
• Peak Power: 38 kW (51 HP).
• Continuous Power (S1): 20 kW (27 HP).
• Maximum Spindle Speed: 10,000 RPM.
• Spindle Drive: Position-controlled axis (Q-axis) for repeatable indexing.

Wheel Changer & Automation

• Wheel Pack Storage: 6-station automatic wheel changer (HSK 50 orientation).
• Maximum Wheel Configuration: Up to 3 x 203 mm (8") wheels or 6 x 152 mm (6") wheels per pack.
• Coolant Delivery: Automatically interchanges matching coolant manifolds during wheel changes.

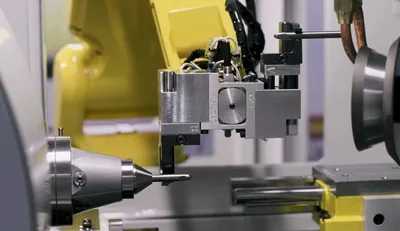

• Automation Upgrades: Compatible with FastLoad-MX Compact Loader or RoboMate Robot Loader systems.

Drive System & Infrastructure

• Linear Drives: Cylindrical, tubular ANCA LinX Linear Motors on X and Y axes.
• Feedback System: High-accuracy linear scales included as standard.
• Base Construction: ANCAcrete polymer concrete base for high thermal stability and vibration dampening.
• Control System: ANCA AMC5 G2 architecture running on Windows 10 platforms
