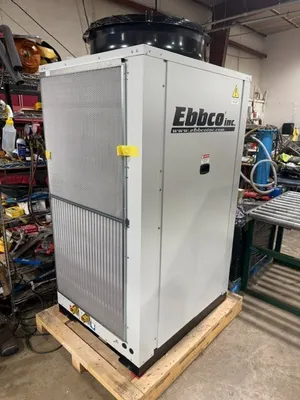

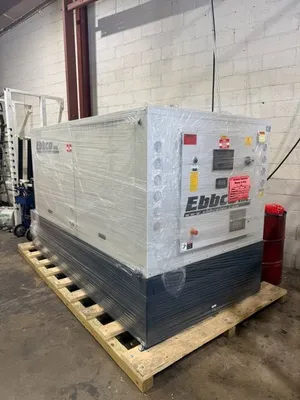

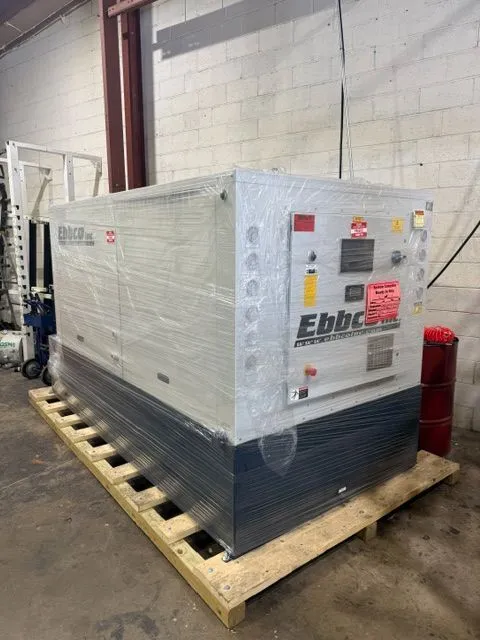

Ebbco Evolution 120/80-90 Heavy-Duty Cartridge Filtration and Cooling System (2010)

Ebbco Evolution 120/80-90 Heavy-Duty Cartridge Filtration and Cooling System [ New Never Used ]

The Ebbco Evolution 120/80-90K (often cataloged under the Evolution 120/80-*K series) is a totally enclosed, heavy-duty cartridge filtration and cooling system. It is designed for multi-machine setups running precision metalworking, carbide grinding, and EDM operations, filtering particles down to 0.5 microns.
The nomenclature of the model indicates its setup: 120/80 denotes the physical frame/cartridge multi-tank configurations, while the 90K specifies an integrated 90,000 BTU chiller unit built into the footprint.

System Performance & Flow Rates

• Maximum Machine Feed Rate: 75 GPM maximum output capacity to the workshop floor.
• Filtration Threshold: Down to 0.5 micron capability using Ebbco high-surface-area cartridges.
• Cooling Integration: 90,000 BTU/hr (approx. 7.5 Ton refrigeration capacity) to control thermal growth in high-speed spindle operations.

Physical Layout & Dimensions

The cabinet profile changes based on the required total surface area (cartridge count) designated for your fluid volume:
• Standard 5-Cartridge Configuration: 39” Width x 90” Length x 66” Height.
• Heavy-Duty 8-Cartridge Configuration: 54” Width x 90” Length x 65” Height.
• Magnetic Separator Pre-Filter Option (-MAG): Adds a magnetic rod drum to pull heavy ferrous chips before they hit the cartridges. This expands the physical length parameter up to 112”.

Electrical Profile

• Power Requirements: 460 Volt, 3-Phase, 60 Hz standard service drop (designed to simultaneously power the main distribution pump, backwash loop, and the integrated 90,000 BTU scroll chiller).
Are you setting this system up for carbide grinding, tool steel, or an EDM cell? I can verify if your specific material requires adding the integrated magnetic separator (-MAG) package or an auto-backwashing valve configuration.

New Never Used
